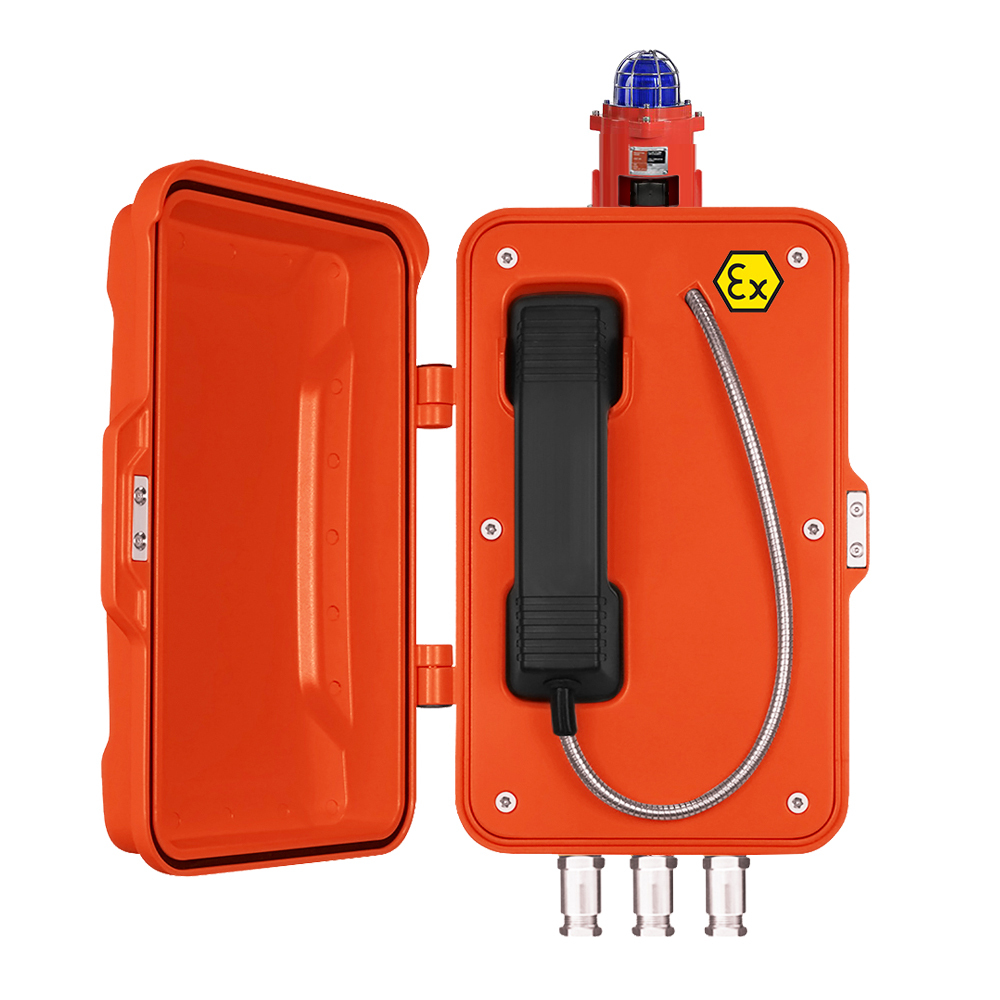

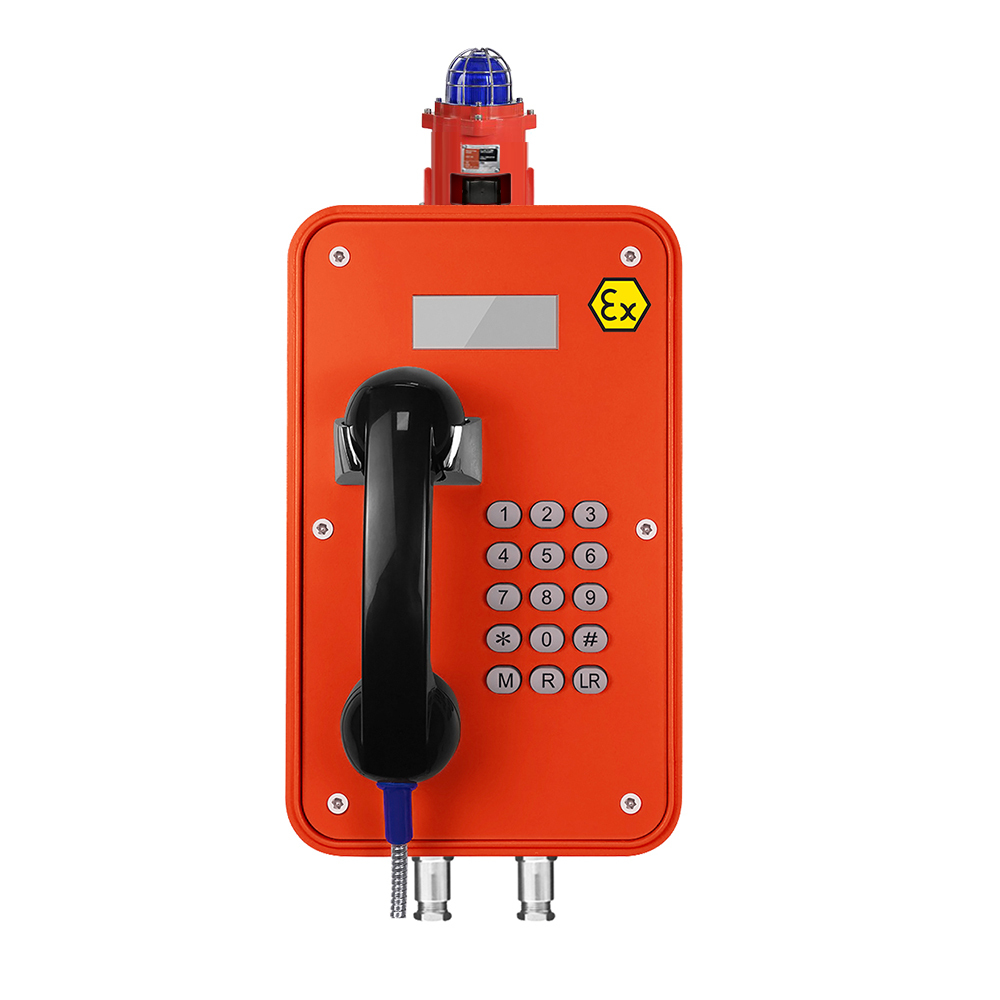

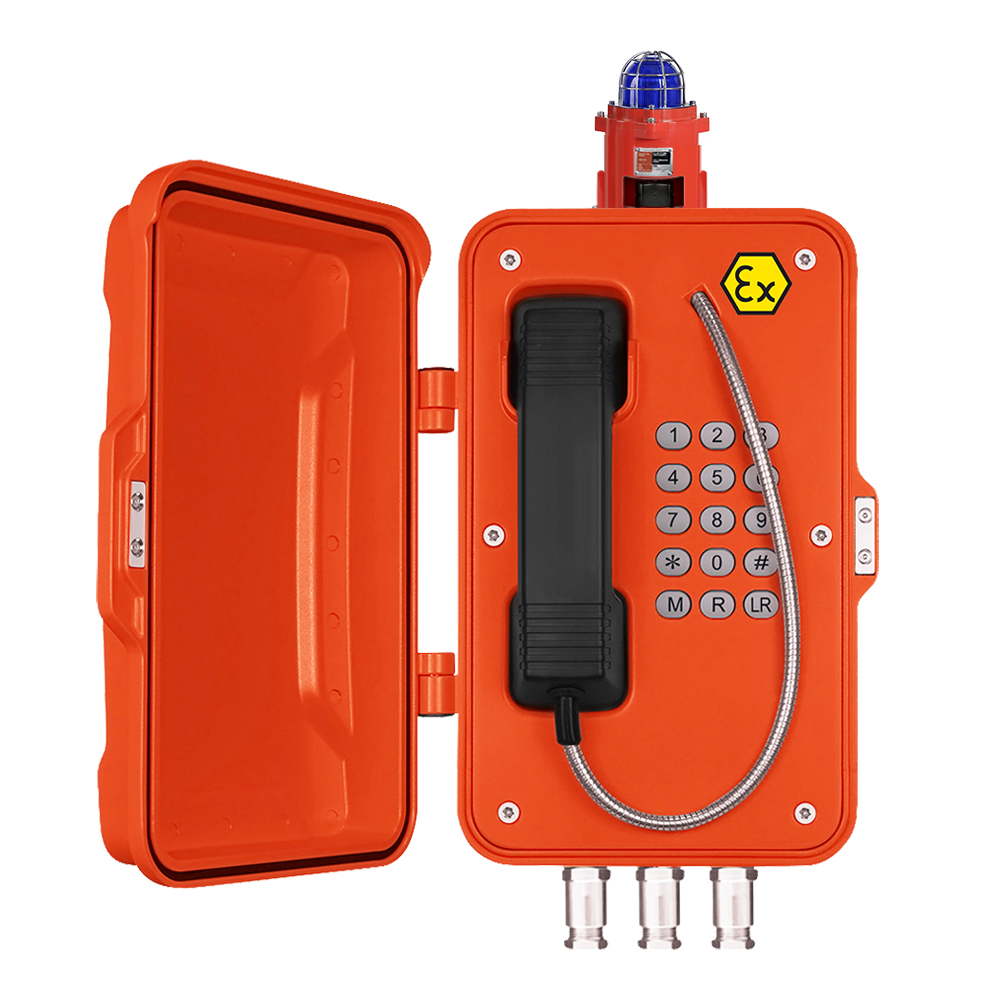

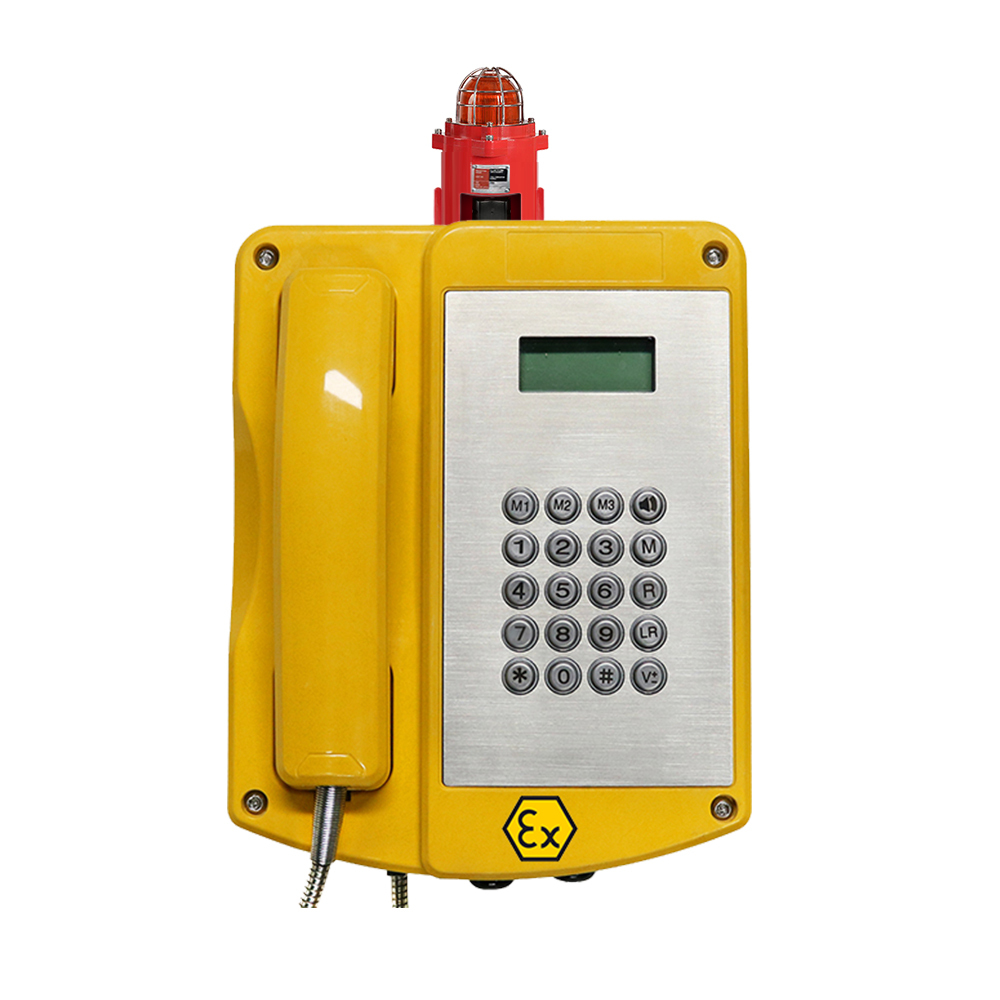

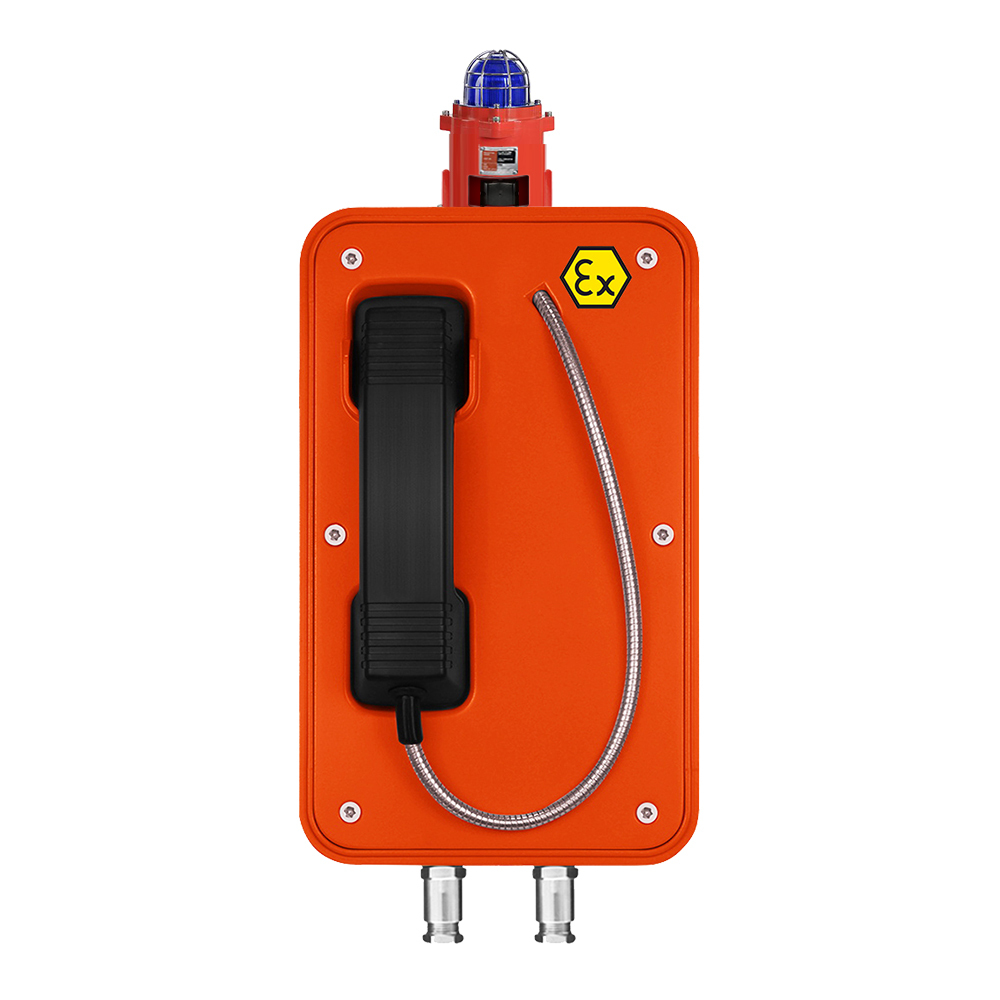

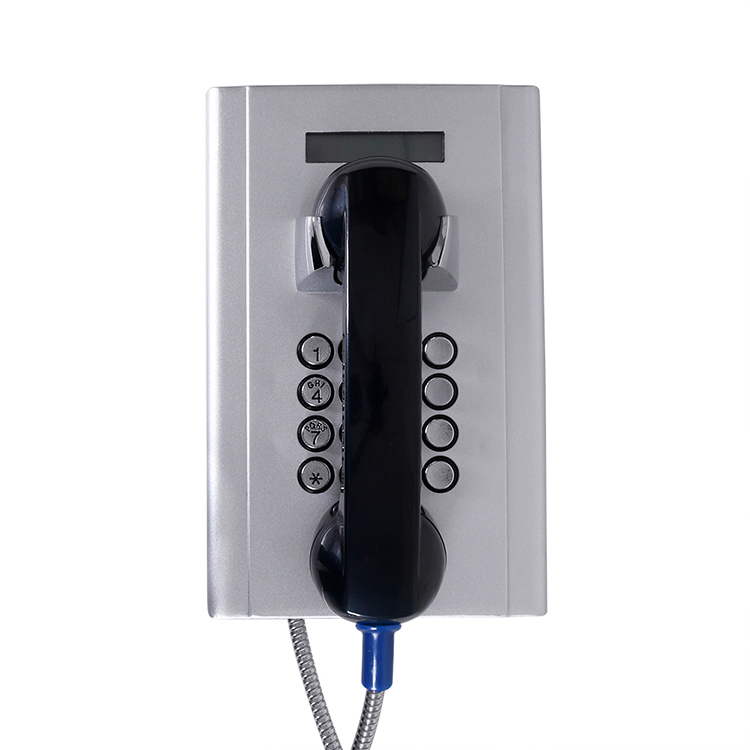

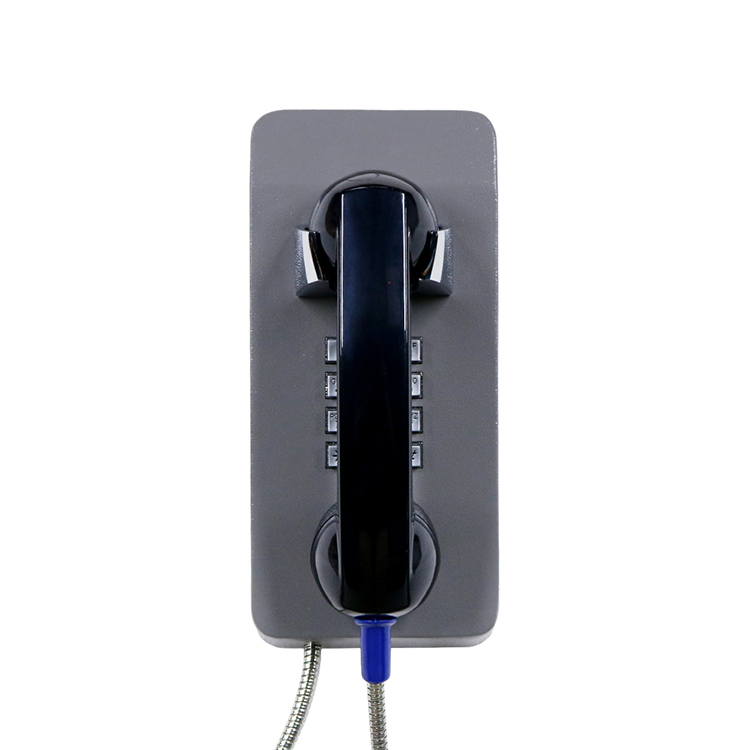

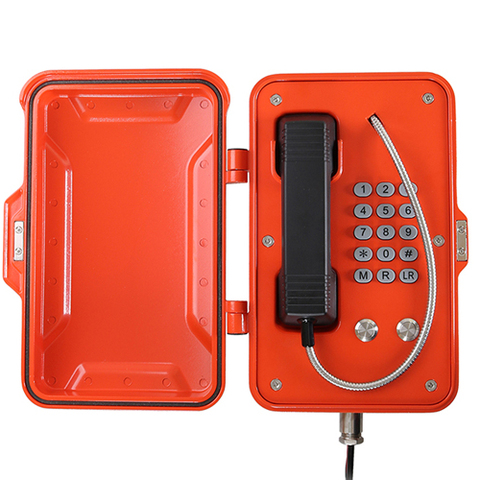

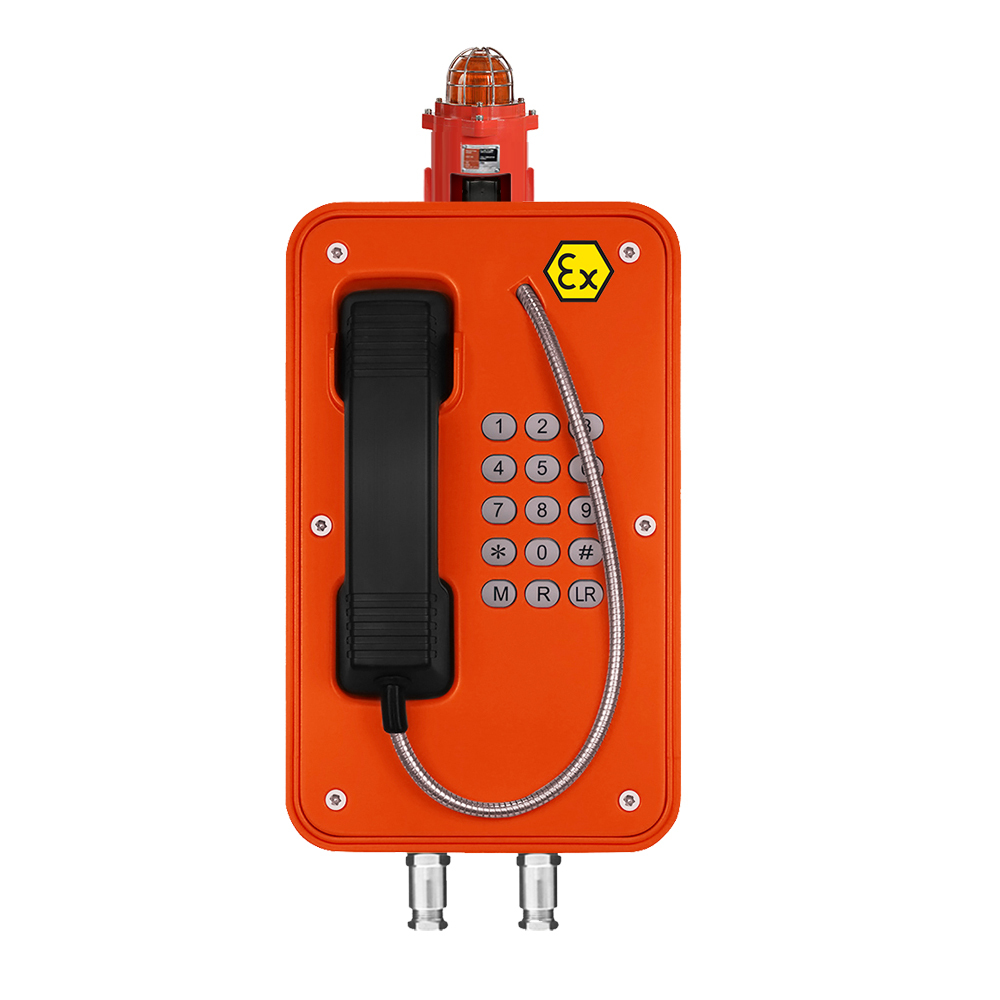

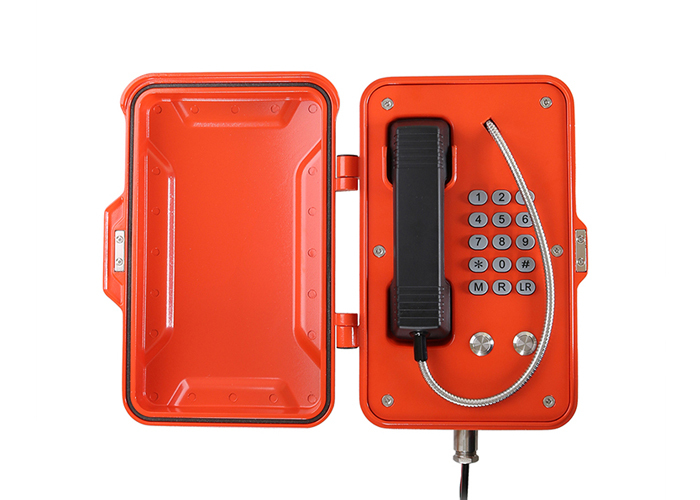

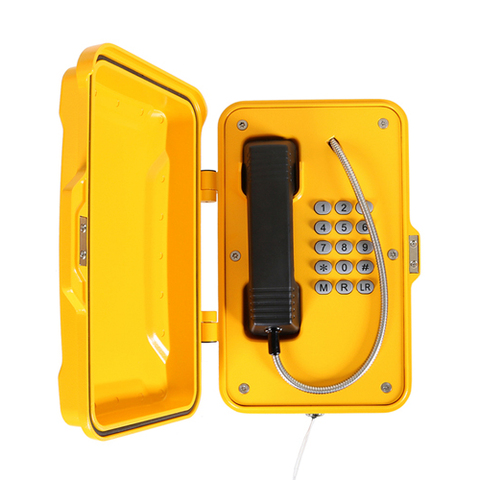

The Explosion Proof Telephone is designed for voice communication in the hostile environment where reliability, efficiency and safety are of prime importance. The telephone can handle the large temperature differences found outdoors, high humidity, exposure to sea water and dust, Corrosive atmosphere, Explosive gases & particles, as well as mechanical wear and tear, making it perfect for use as an emergency telephone. The unique robust handset is manufactured from molded Bulk Molding Compound and designed specifically to withstand arduous use in all environments, armored cord to provide additional resistance to vandalism or heavy industrial use.

The Explosion-proof Telephones are designed for use by the chemical plants, Coal Mines, power stations, the armed services and heavy industries which require very reliable and explosion protection telephony under adverse conditions.


Choice Options

  • Communication Options:
    • Standard SIP/VOIP (SIP 2.0(Compatible with most IP PBX)
    • Standard Analogue
  • Power
    • Line Powered
    • PoE
    • Power Supply
  • Models Options
    • With or without cord
    • With or without keypad
    • Alarm Beacon
    • Broadcasting SIP speaker
  • Aluminium alloy die-casting body
  • Vandal resistant handset and cord
  • Ex eb ib [ib Gb] mb IIC T6/T5 Gb
  • Ex ib [ib Db] tb IIIC T80℃/T95℃ Db
  • Zone 1,2,22
  • IECEx, ATEX, CE, FCC, RoHs compliant
  • Weather proof protection to IP66-IP67
  • Operation temperature: -40℃ to 65℃

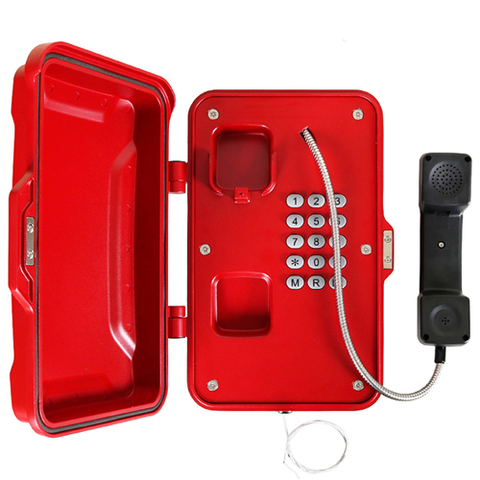

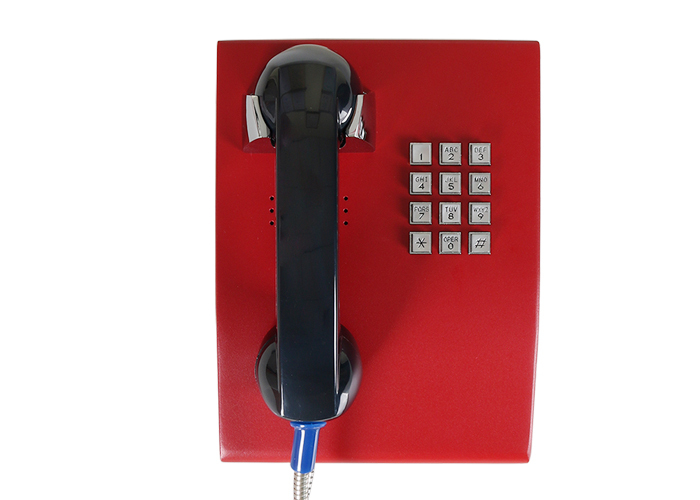

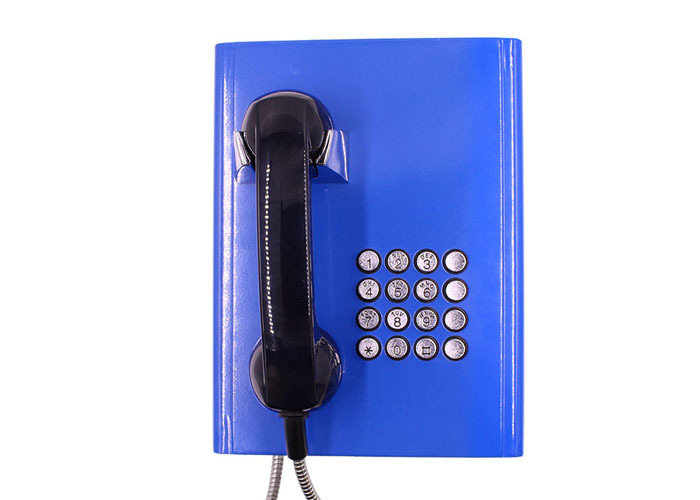

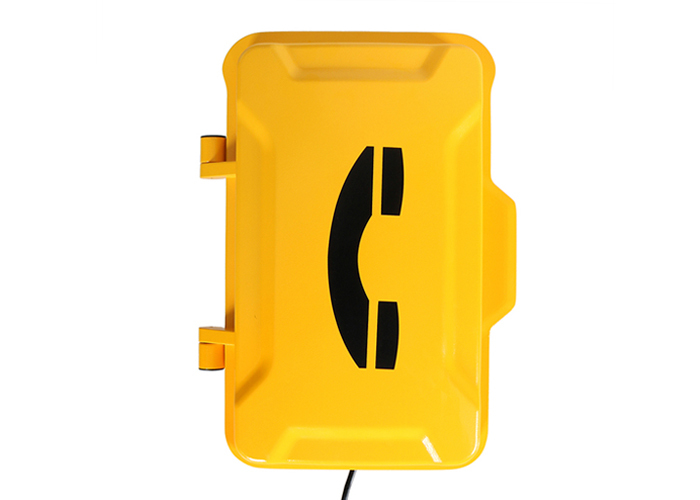

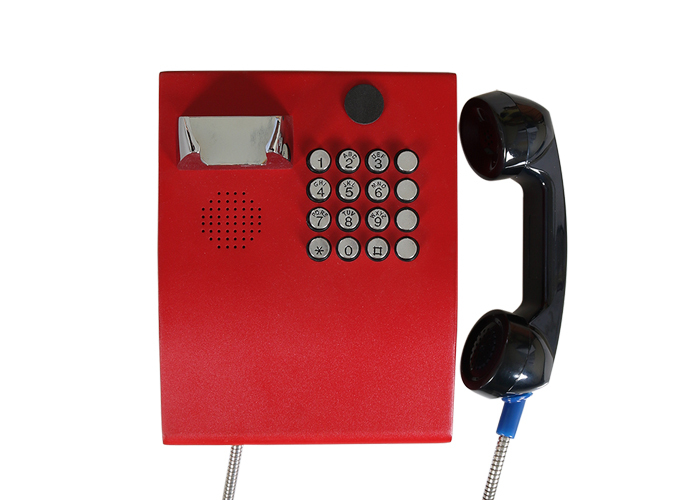

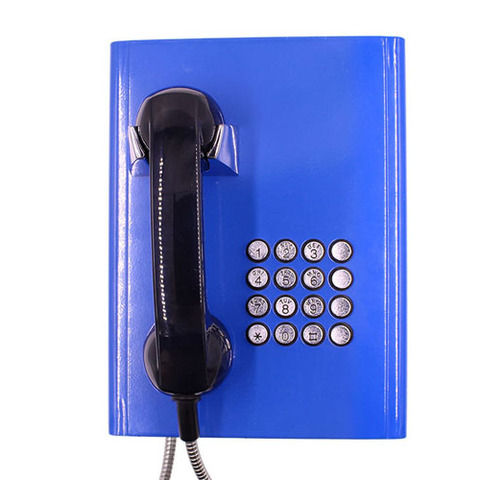

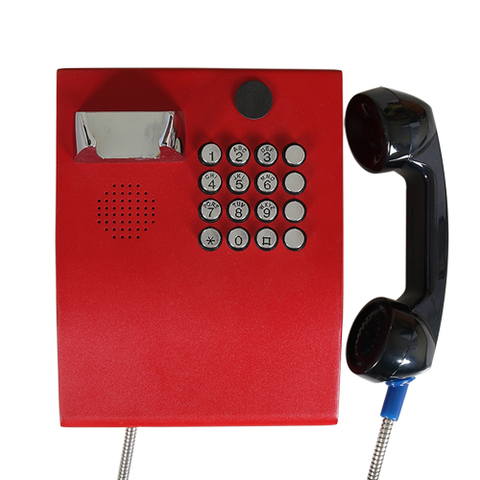

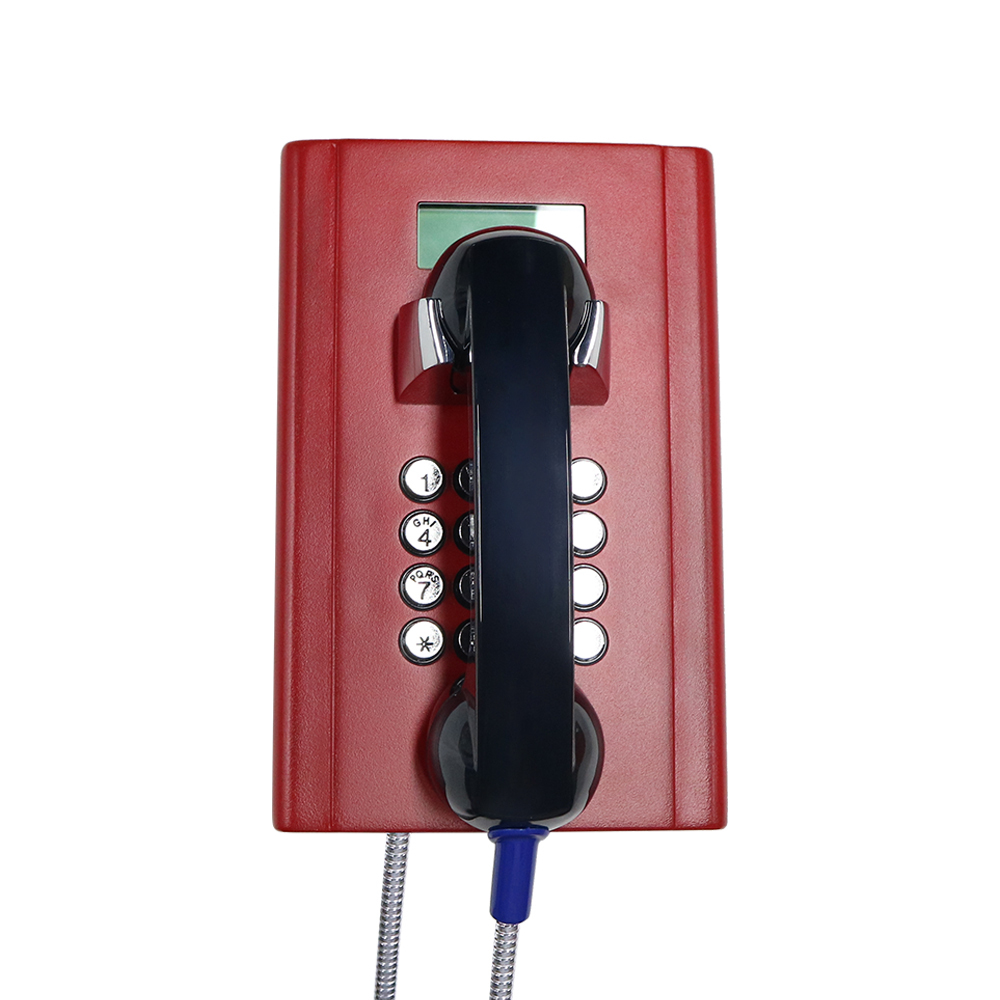

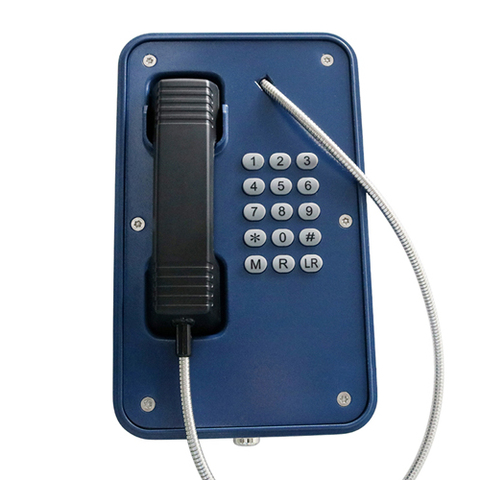

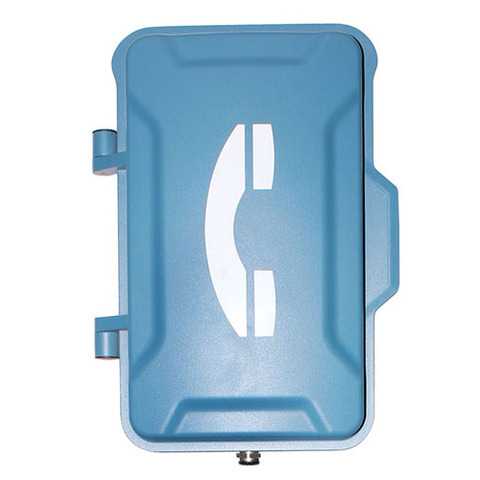

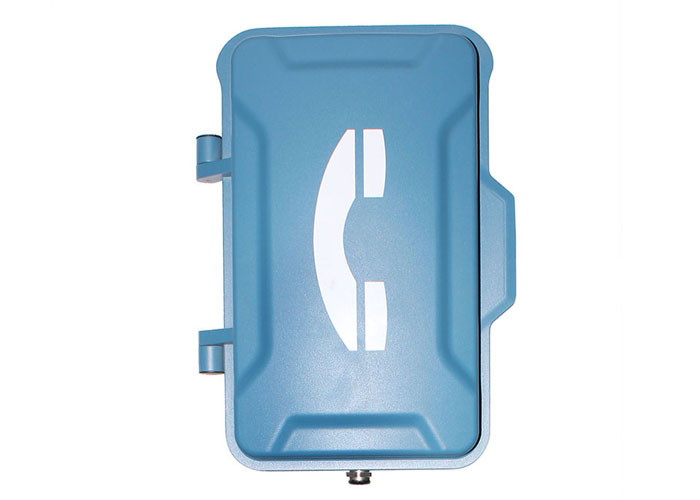

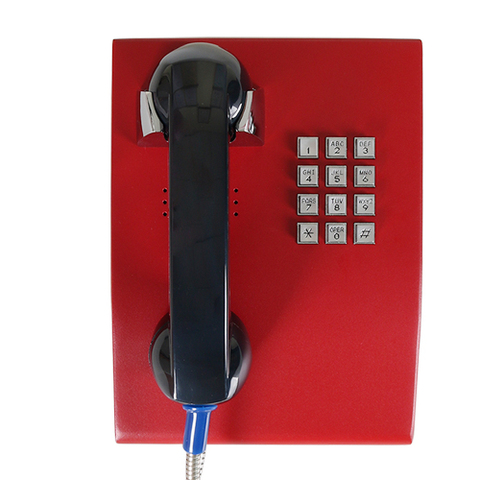

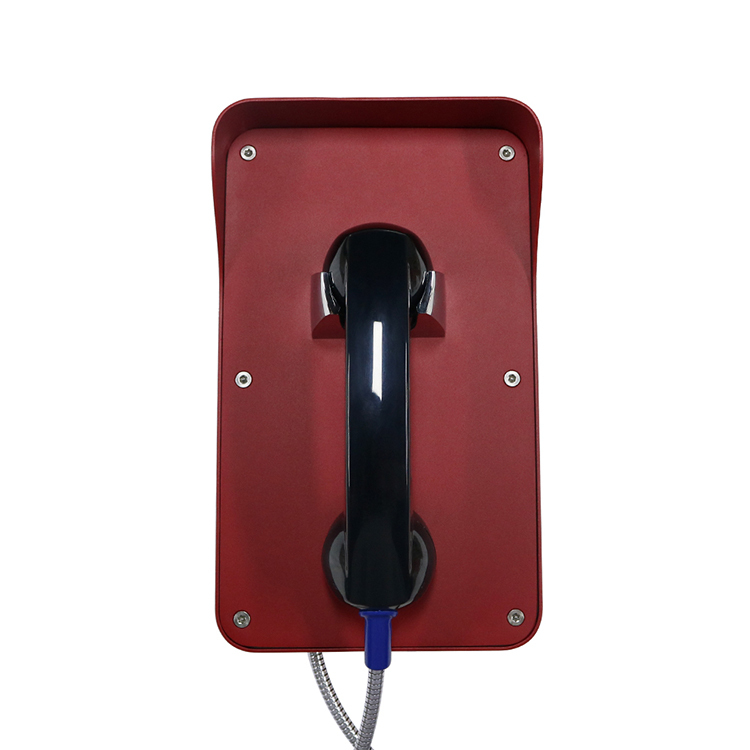

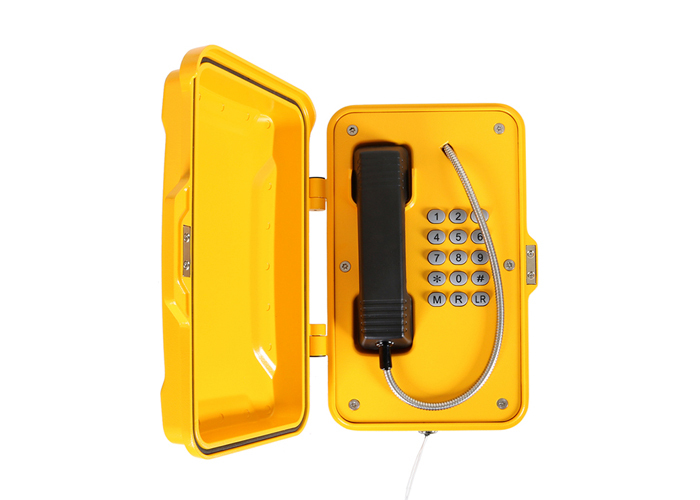

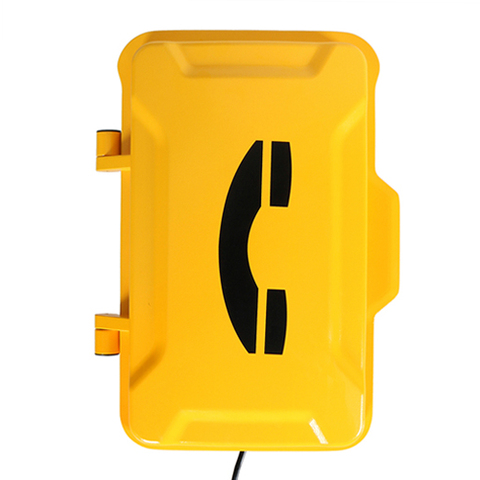

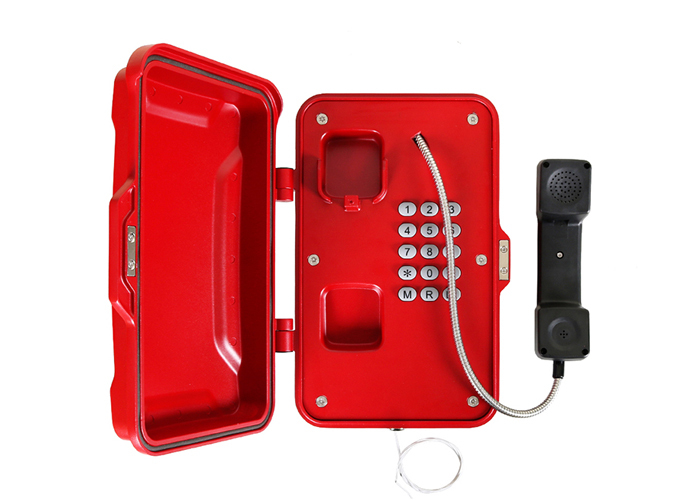

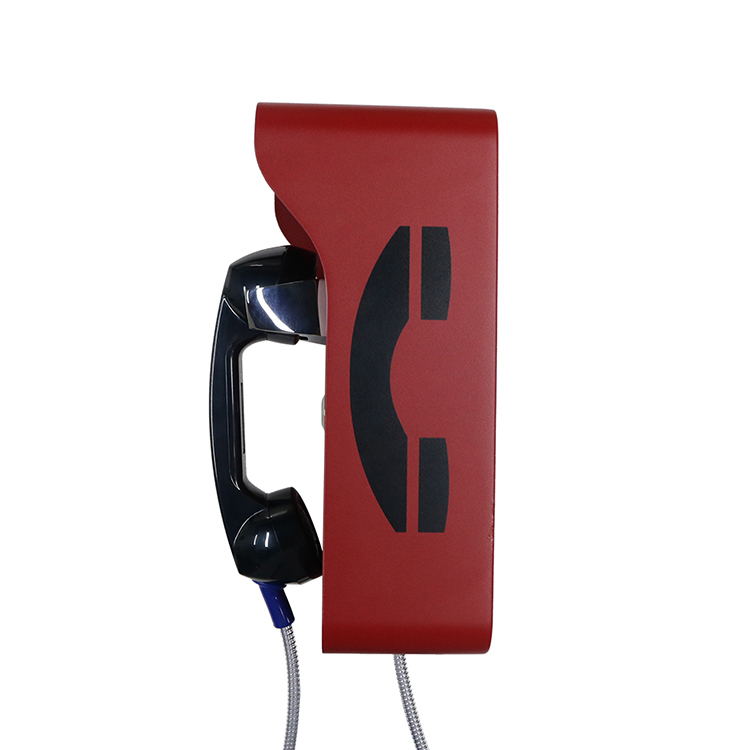

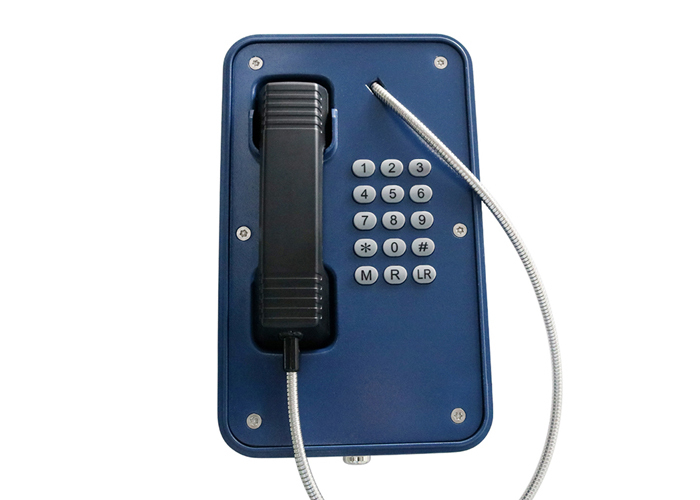

Waterproof Industrial Telephone with great stability and strong anti-interference ability, supports full duplex communication and two-way communication, designed according to the stability requirements of minus 40 degrees to 75 degrees above zero, and its technical index is at the international leading level. The waterproofing performance of the phone is up to IP67 and is suitable for wet, extreme temperature, and bad weather environment use.

Choice Options

  • Communication Options:
    • Standard SIP/VOIP (SIP 2.0(Compatible with most IP PBX)
    • Standard Analogue
  • Power
    • Line Powered
    • PoE
    • Power Supply
  • Models Options
    • With or without cord
    • With or without keypad
    • Alarm Beacon
    • Broadcasting SIP speaker
  • Aluminium alloy die-casting body
  • Vandal resistant handset and cord
  • Weather proof protection to IP66-IP67
  • Operation temperature: -40℃ to 65℃

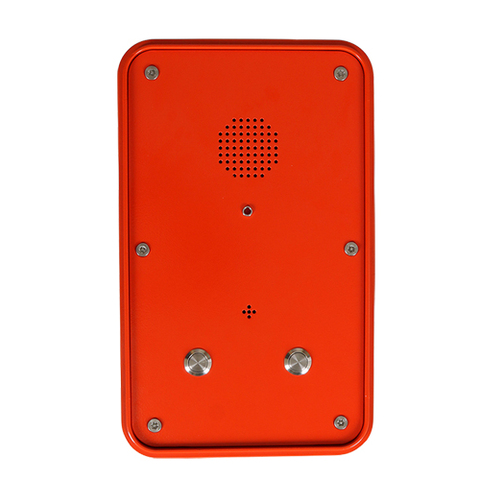

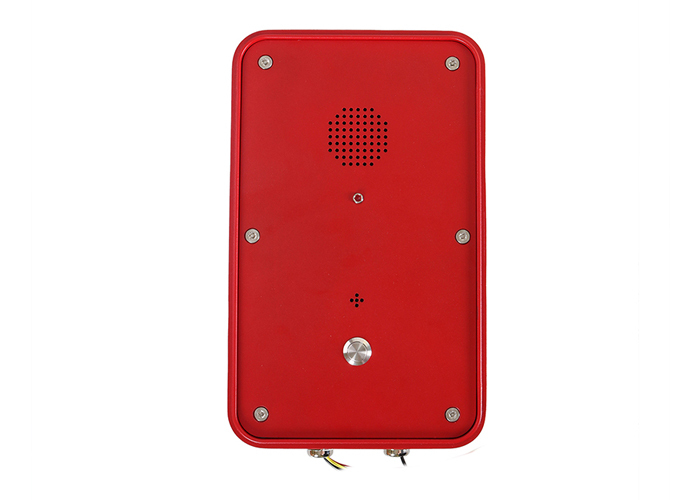

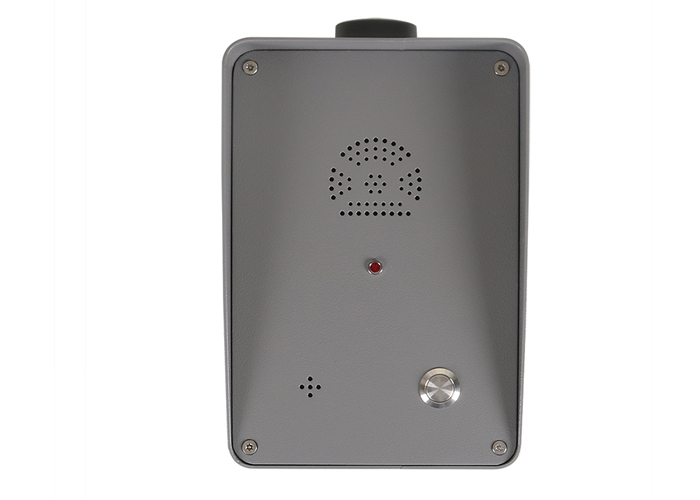

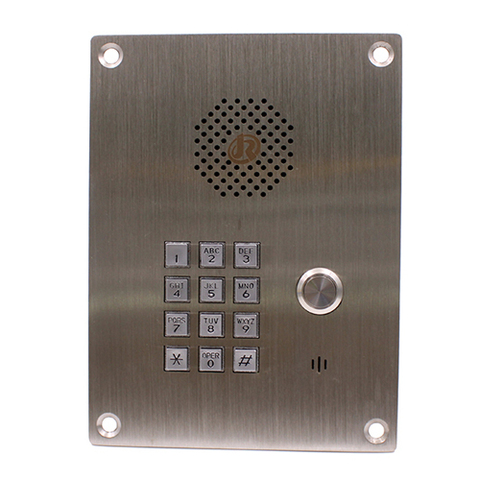

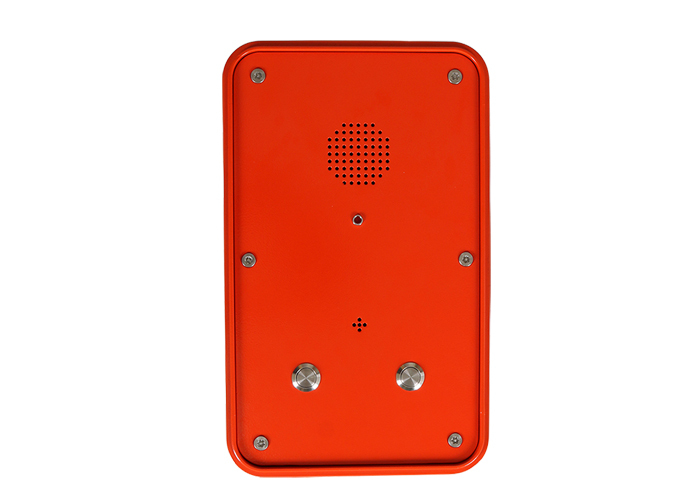

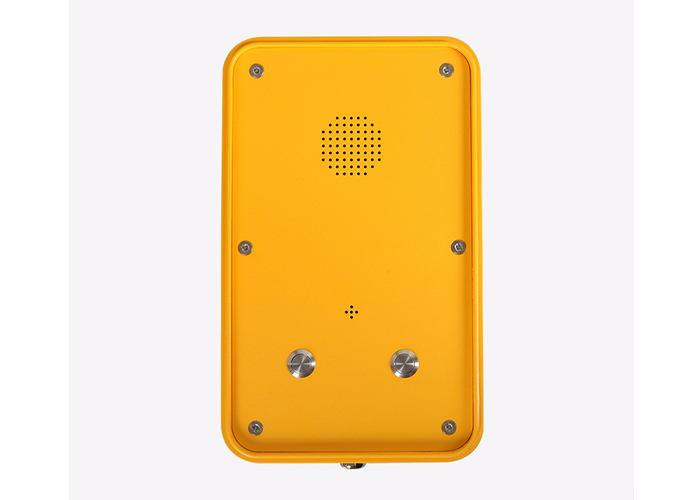

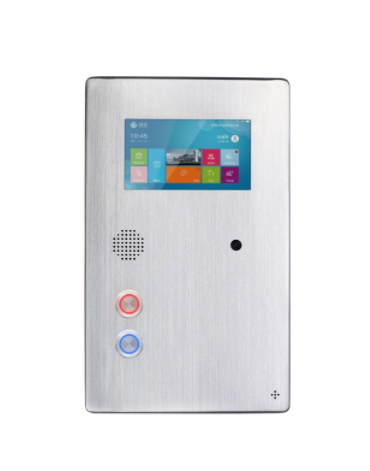

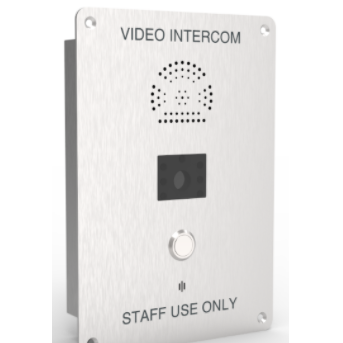

Intercom system is crucial for security and emergency applications, for security purpose, it allows reliable and secured access management for facilities and complexes upon request, in case of emergency situation it ensures personals safety, immediate response to emergency case and contact security staff.

By integrating broadcasting speakers or use intercom’s speaker for broadcasting, we can have unique impressive security & safety solution (refer to broadcasting section for more details)

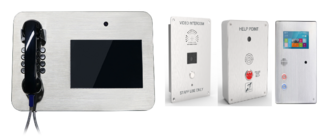

System components

  • JR Management Software.
  • SIP Intercom Server.
  • Dispatching Console.

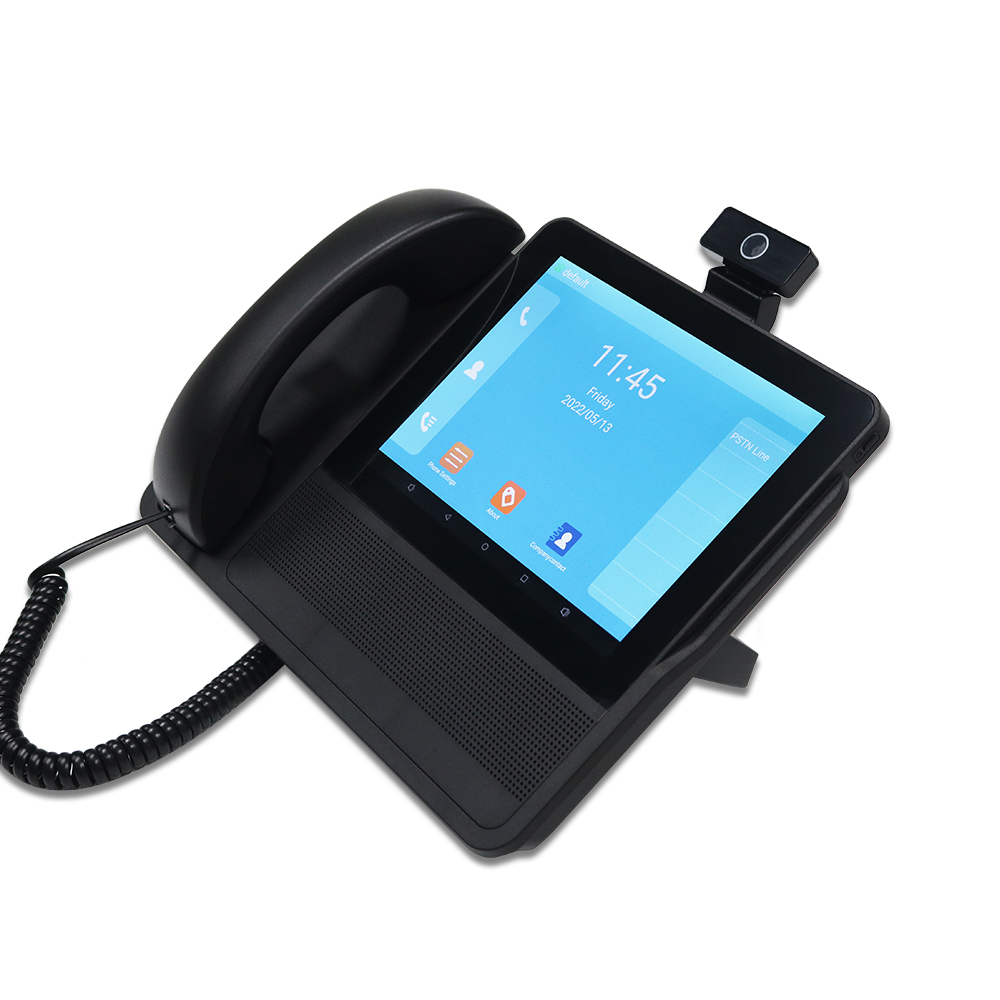

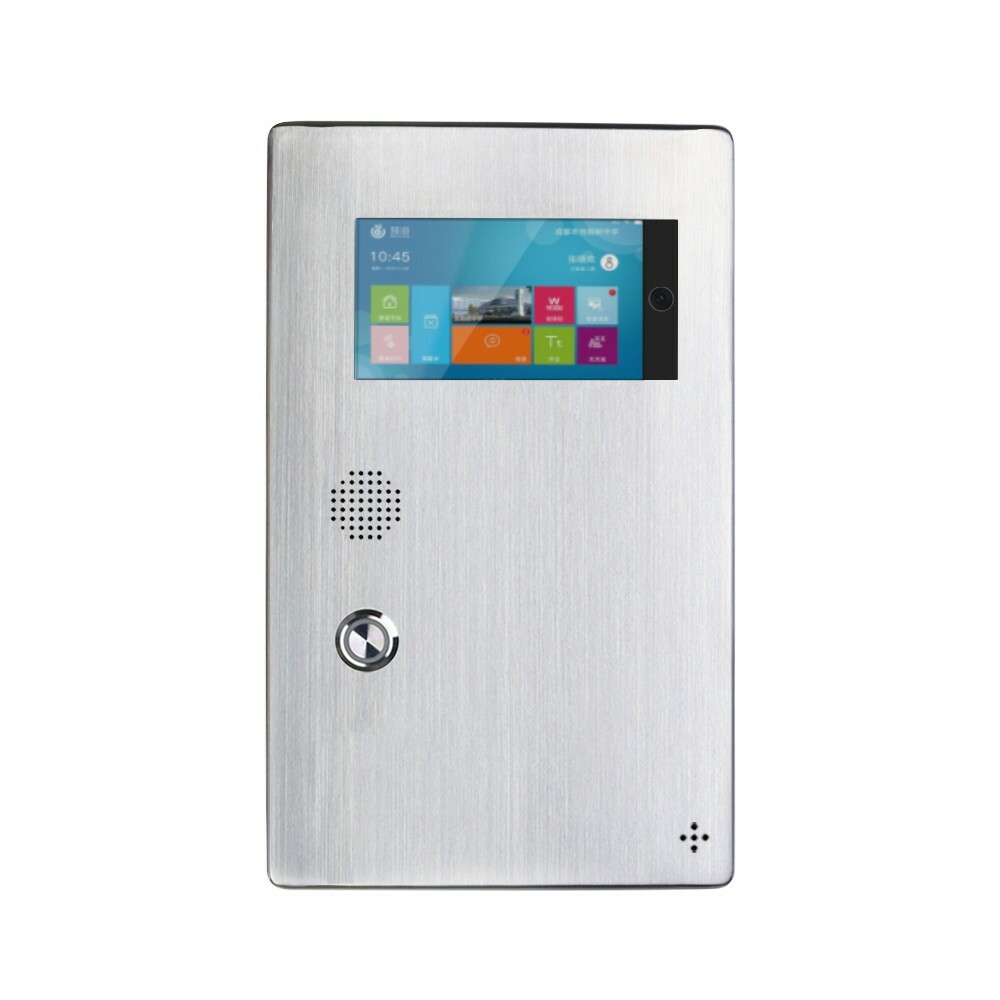

  • IP video intercom phone.
  • Intercom Units.

Integration Options

  • SIP Intercom Units compatible with any standard sip VOIP server or PABX.
  • Optional SIP IP speaker can be attached to intercom unit for broadcasting.
  • Alarm beacon can be attached to intercom unit for emergency notification.
  • ATEX models available for Intercom units, SIP Speakers and Alarm Beacons.

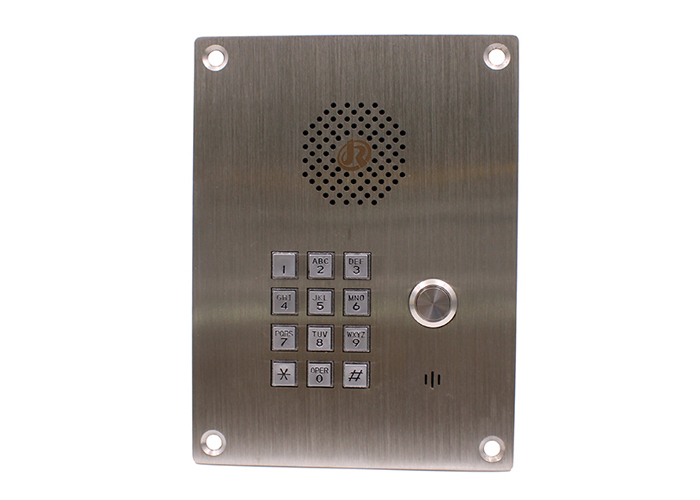

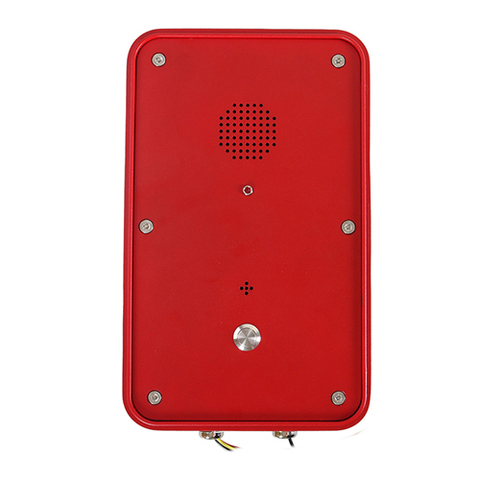

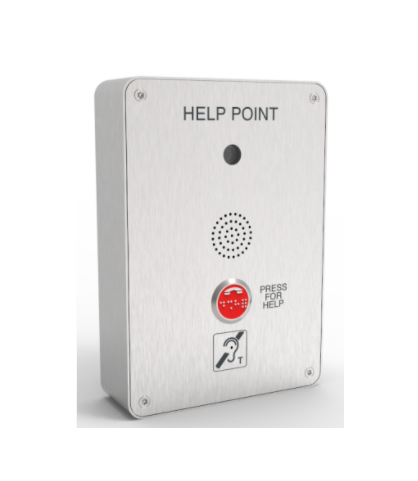

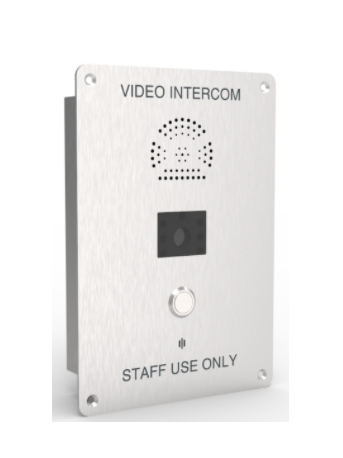

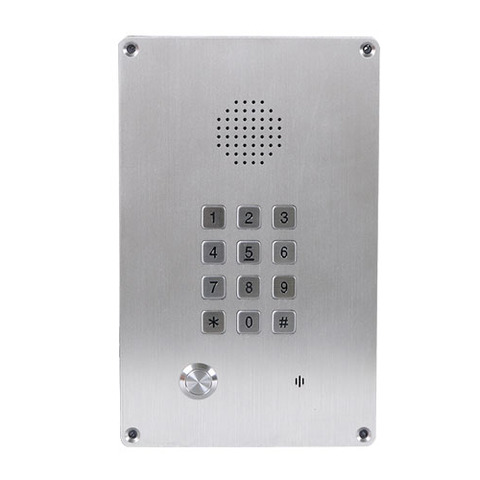

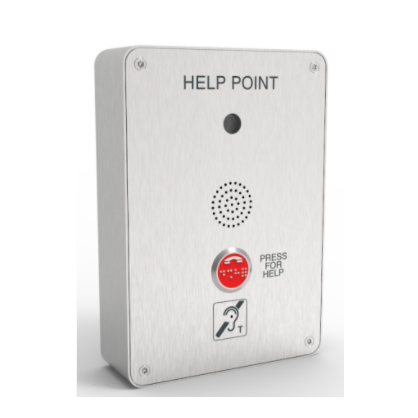

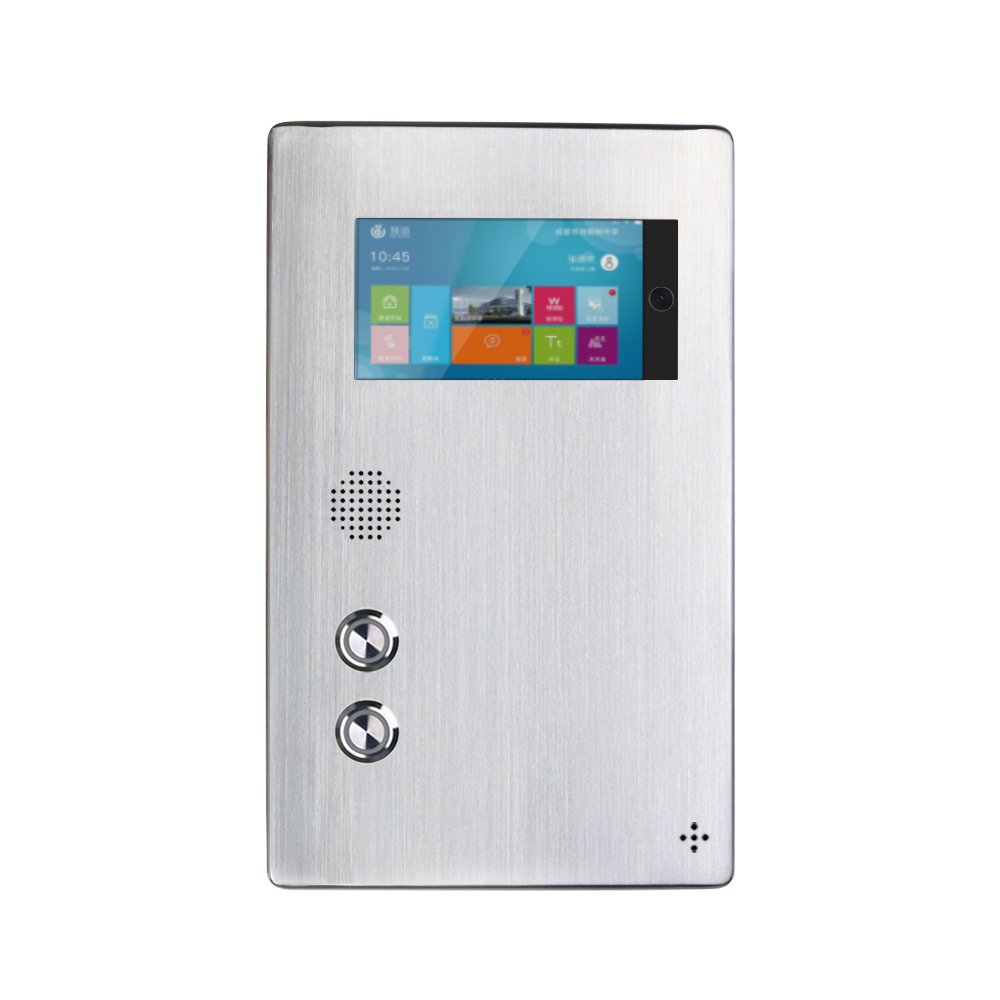

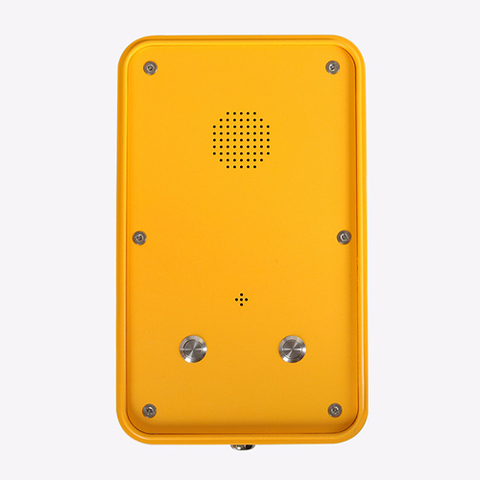

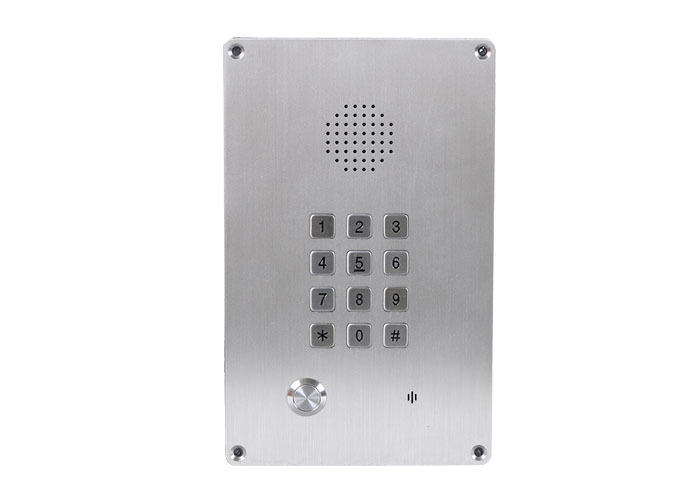

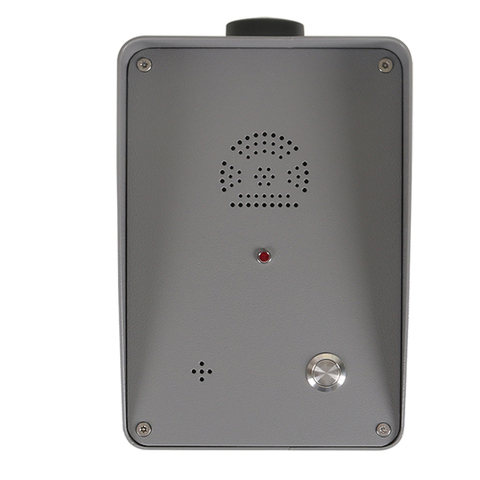

Intercom Unit Specification

  • Communication Options:
    • Standard SIP/VOIP (SIP 2.0(Compatible with most IP PBX)
  • Power
    • PoE
    • Power Supply
  • Models Options

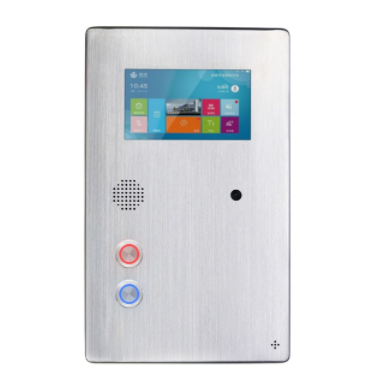

    • Audio Only or Video Intercom
    • One Button or 2 Buttons units
    • keypad option to have telephone features
    • Alarm Beacon
    • Broadcasting SIP speaker
  • Aluminium alloy die-casting body
  • Vandal resistant
  • ATEX Untis
    • Ex eb ib [ib Gb] mb IIC T6/T5 Gb
    • Ex ib [ib Db] tb IIIC T80℃/T95℃ Db
    • IECEx, ATEX, CE, FCC, RoHs compliant
    • Zone 1,2,22
  • Weather proof protection to IP66-IP67
  • Operation temperature: -40℃ to 65℃

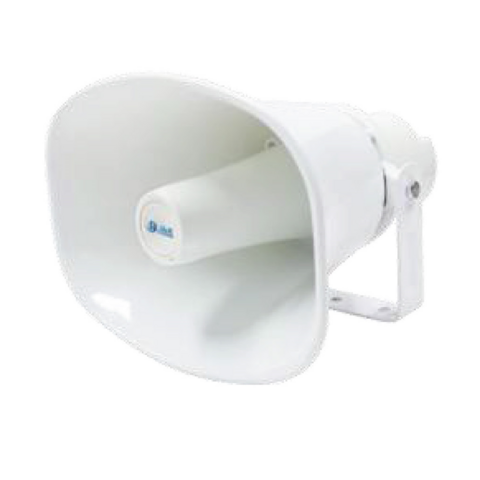

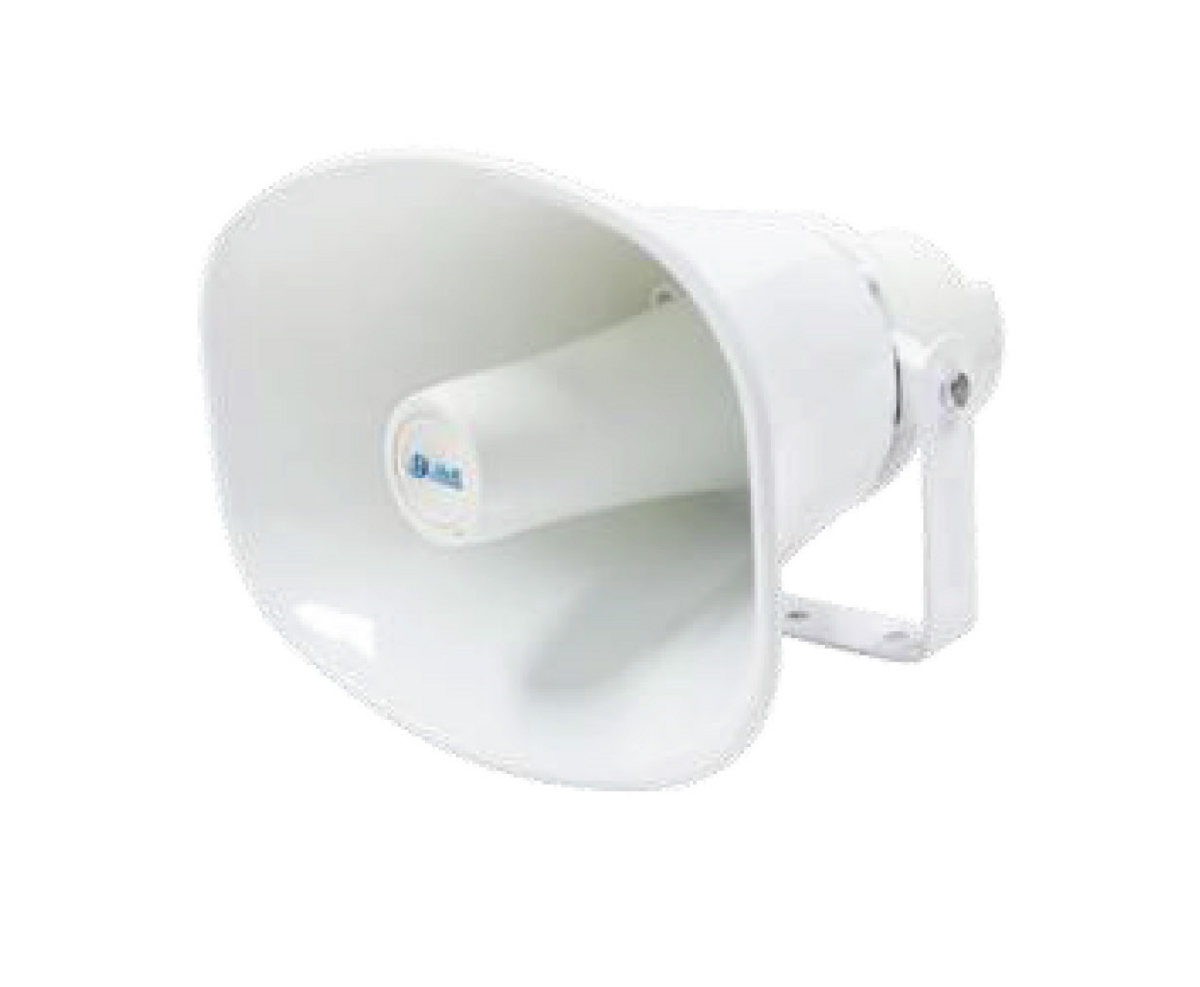

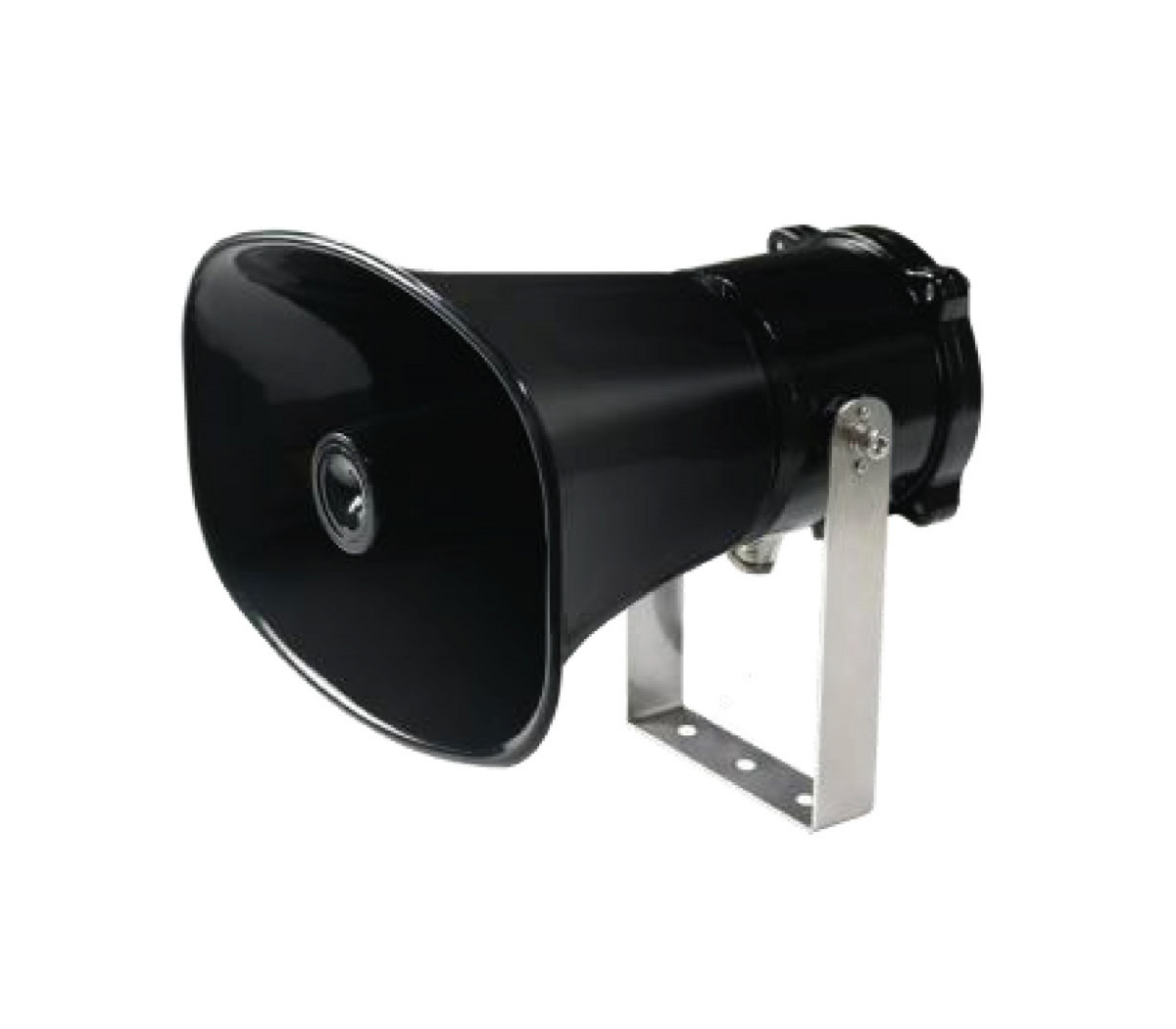

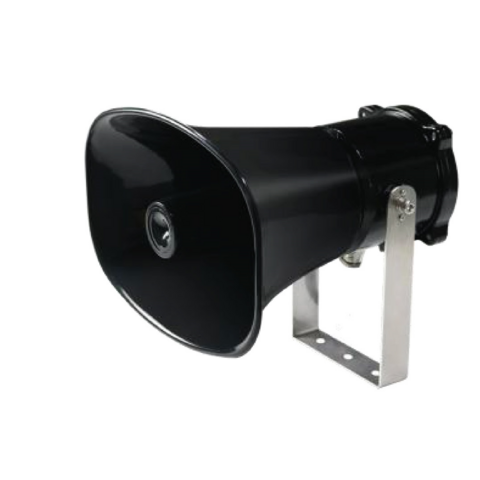

IP Broadcasting system designed to be a seamless part of industrial communication systems, it provides the ability to address and guide persons needed to receive warning or support in cases of security issues or emergency situation.

For outdoor environment external speaker can be attached to intercom or telephone unit (ATEX version available) and for indoor environment telephone and intercom speakers can be used.

Broadcasting can be done using JR system or integrate with IP PABX with SIP2 protocol, JR SIP phones can be used withing bot options.

Broadcasting is seamlessly integrated through JR systems along with Video communications and Video Surveillance and controlled from single point.

Choice Options & Specifications

  • Communication Options:
    • Standard SIP/VOIP (SIP 2.0(Compatible with most IP PBX)
    • Standard Analogue
  • Power
    • Line Powered
    • PoE
    • Power Supply
  • Models Options
    • With or without cord
    • With or without keypad
    • Alarm Beacon
    • Broadcasting SIP speaker
  • Aluminium alloy die-casting body
  • Vandal resistant handset and cord
  • ATEX Untis
    • Ex eb ib [ib Gb] mb IIC T6/T5 Gb
    • Ex ib [ib Db] tb IIIC T80℃/T95℃ Db
    • IECEx, ATEX, CE, FCC, RoHs compliant
    • Zone 1,2,22
  • Weather proof protection to IP66-IP67
  • Operation temperature: -40℃ to 65℃

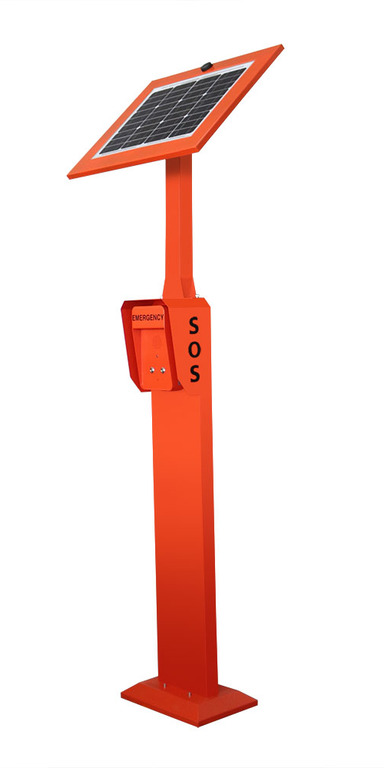

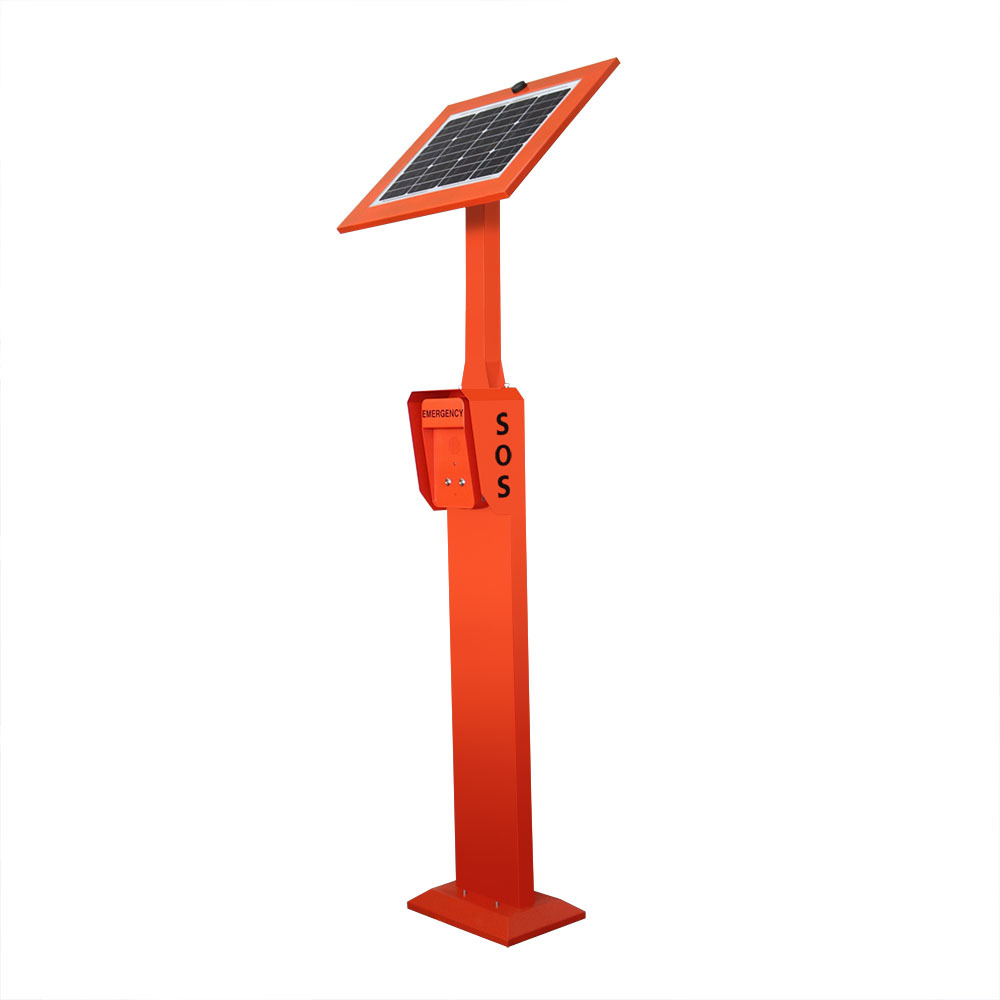

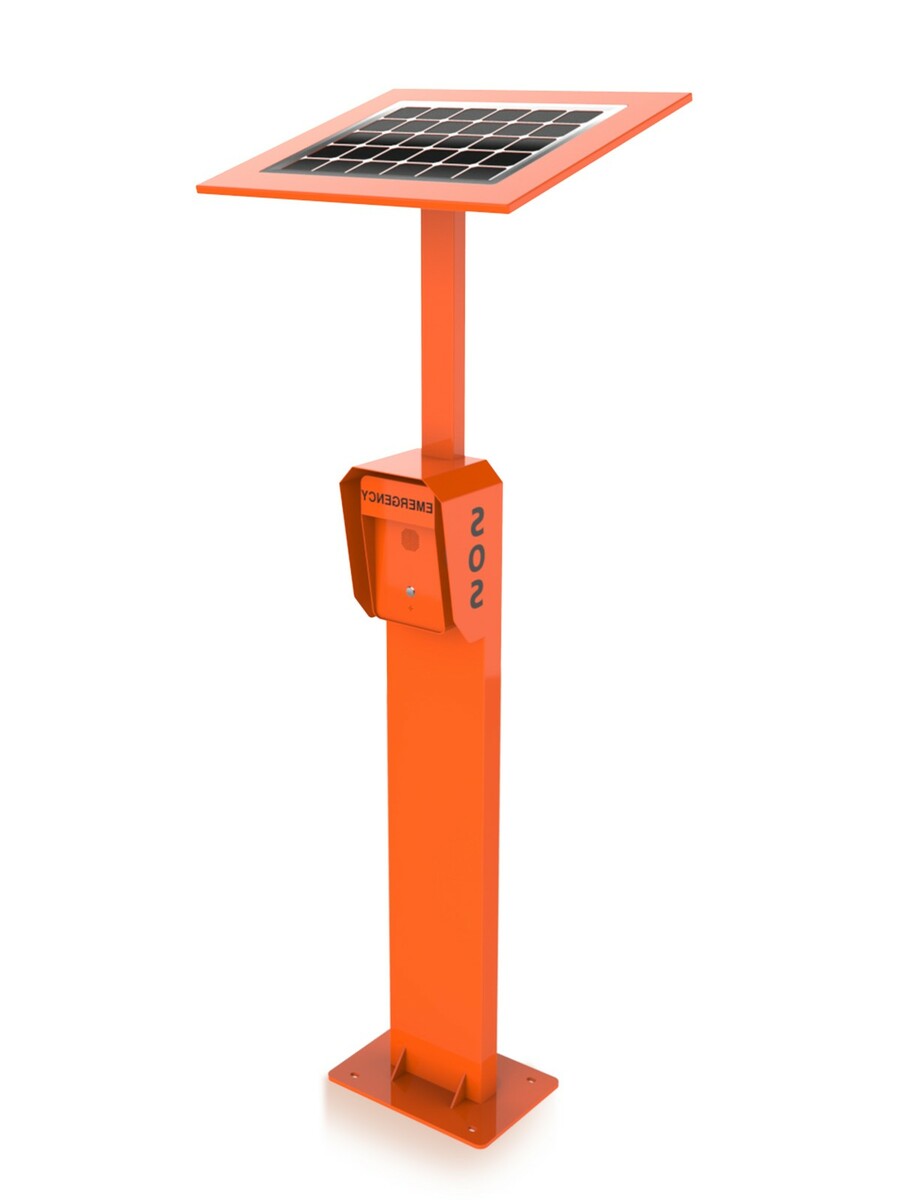

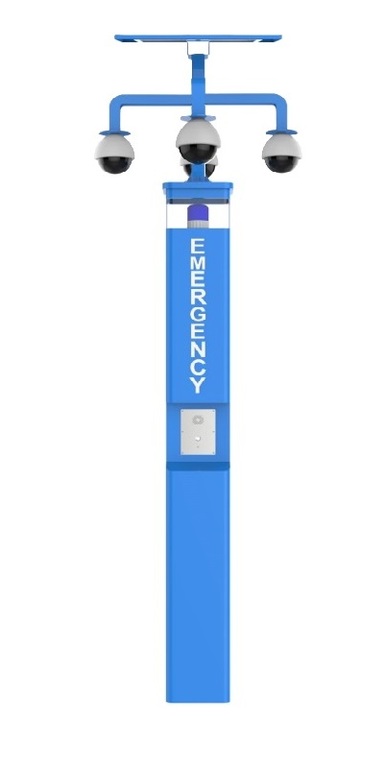

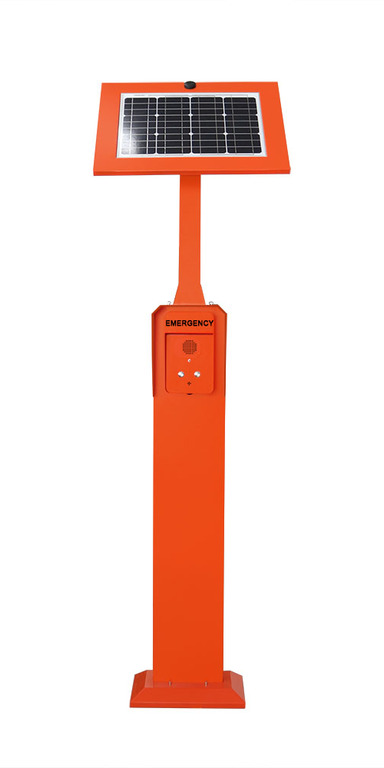

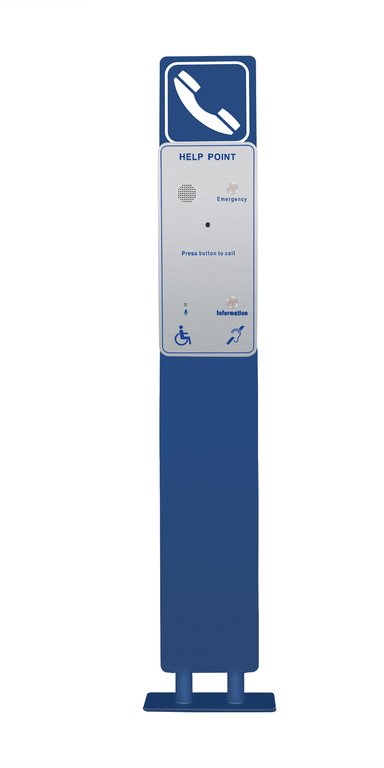

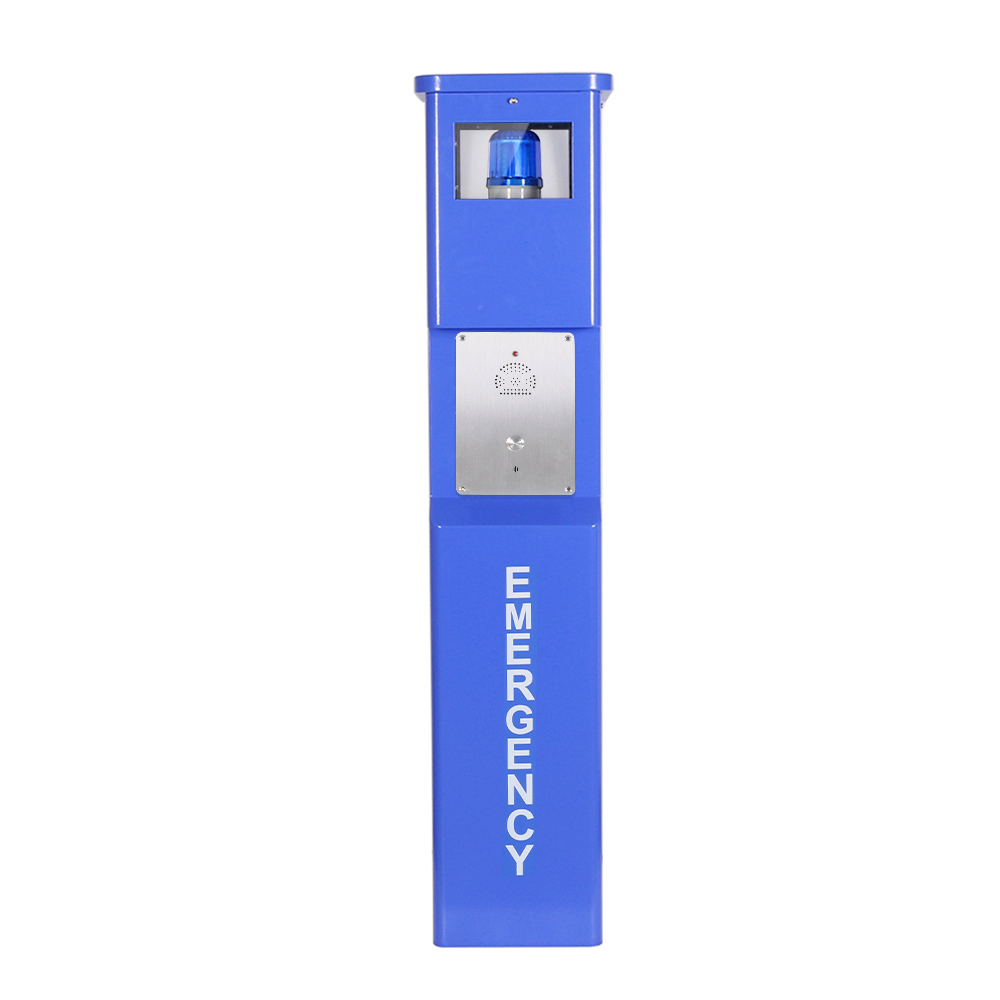

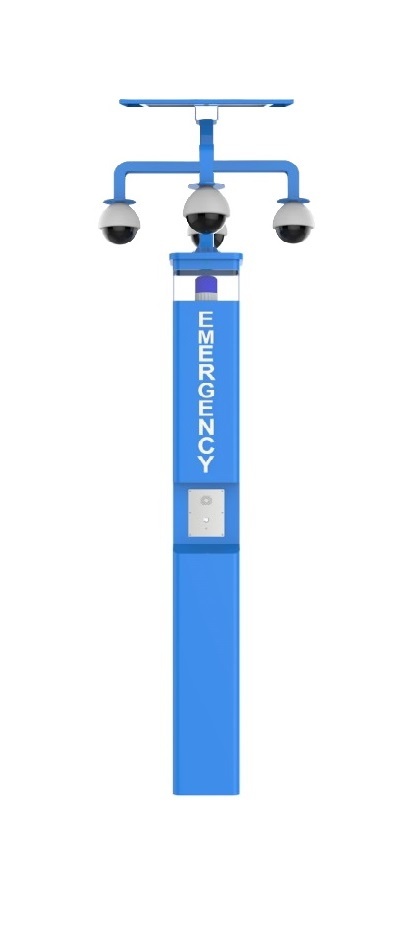

A revolutionary solution to provide ultra fast deployment Emergency & Security systems for roadsides, without the need for extending dedicated infrastructure, communication via GSM in addition to the use of solar power; coverage of remote areas, high ways and roadsides can be done perfectly.

Choice Options

  • Communication Options:
    • GSM - 4G module
    • Standard SIP/VOIP (SIP 2.0(Compatible with most IP PBX)
  • Power
    • Solar Powered with Energy Storage
    • PoE
    • Power Supply
  • Models Options
    • Telephone Unit
    • Intercom Unit
    • 1-4 CCTV camera
    • Broadcasting SIP speaker
    • Alarm Beacon

Specifications

  • Power
      • Line Powered
      • PoE
      • Power Supply
      • Aluminium alloy die-casting body
    • Vandal resistant handset and cord
    • ATEX Untis
      • Ex eb ib [ib Gb] mb IIC T6/T5 Gb
      • Ex ib [ib Db] tb IIIC T80℃/T95℃ Db
      • IECEx, ATEX, CE, FCC, RoHs compliant
      • Zone 1,2,22
    • Weather proof protection to IP66-IP67
    • Operation temperature: -40℃ to 65℃
  • Pillar Specifications
      • GRP(glass fiber reinforced plastic)/Cold rolled steel body
      • Vandal resistant
      • Weather proof housing for equipment/ ATEX solutions available
      • Anti-corrosion, high temperature resistance, flame retardant
      • Noise reduction: 15 dB to 38 dB
      • Application fields: Ship, offshore/onshore platform, power plant, smelters, petrochemicals, manufacture, public area, campus, hospital, etc

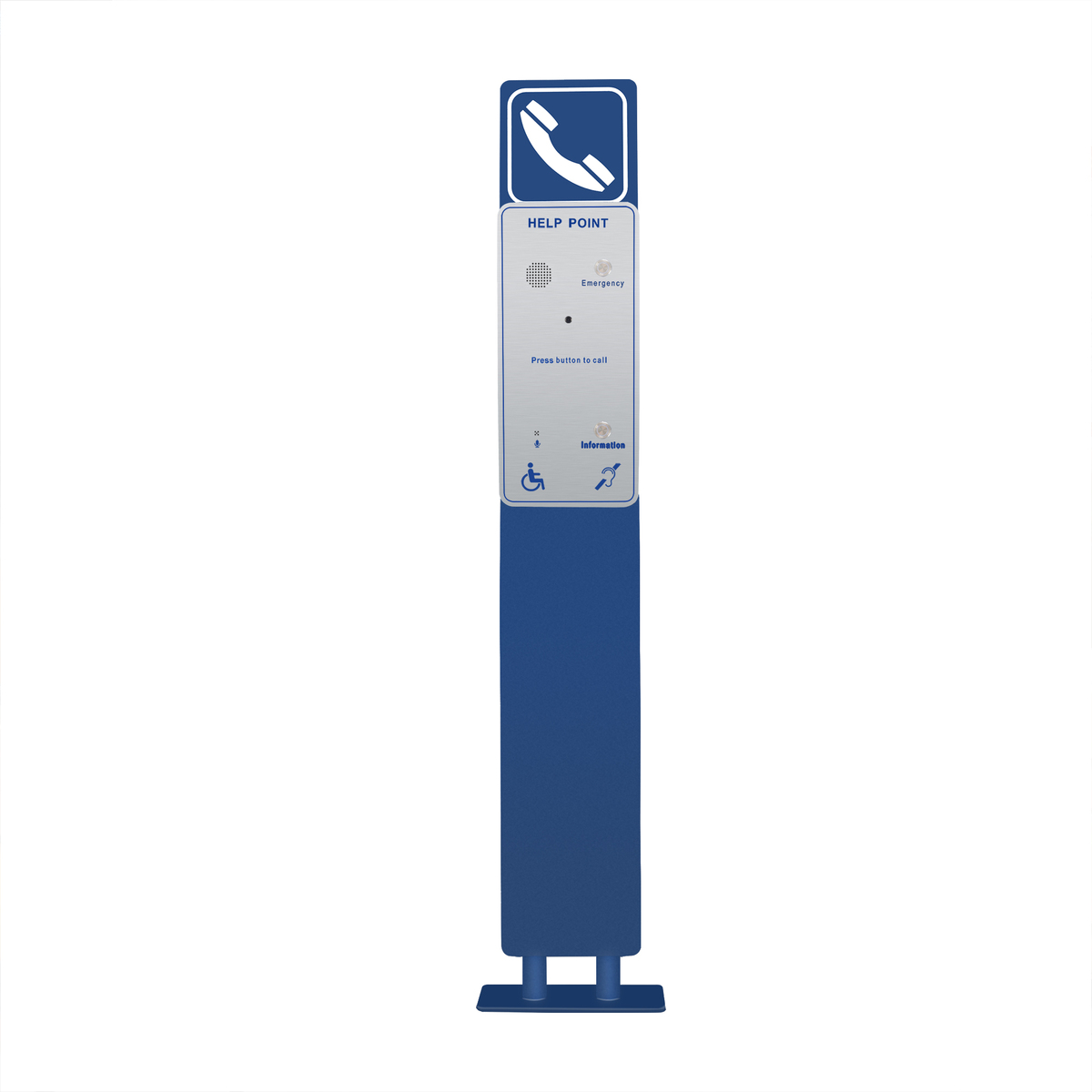

IJ&R provide a large variety of models and pillars of mounting and protection accessories suitable for outdoor and Explosion proof units.

Products

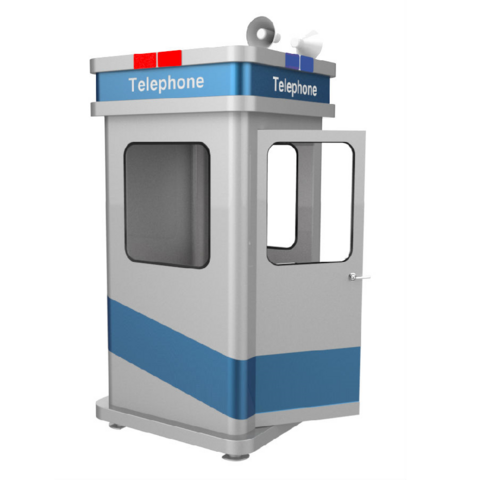

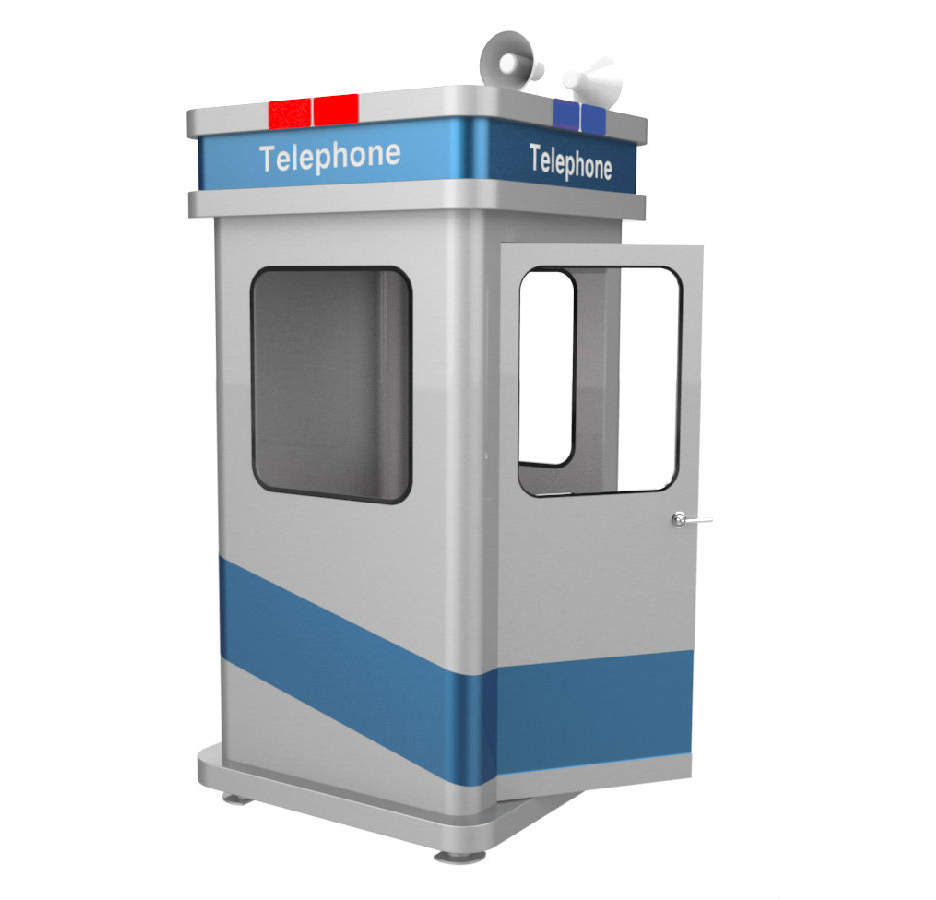

  • Booth.
  • Acoustic Hood.
  • Pillar

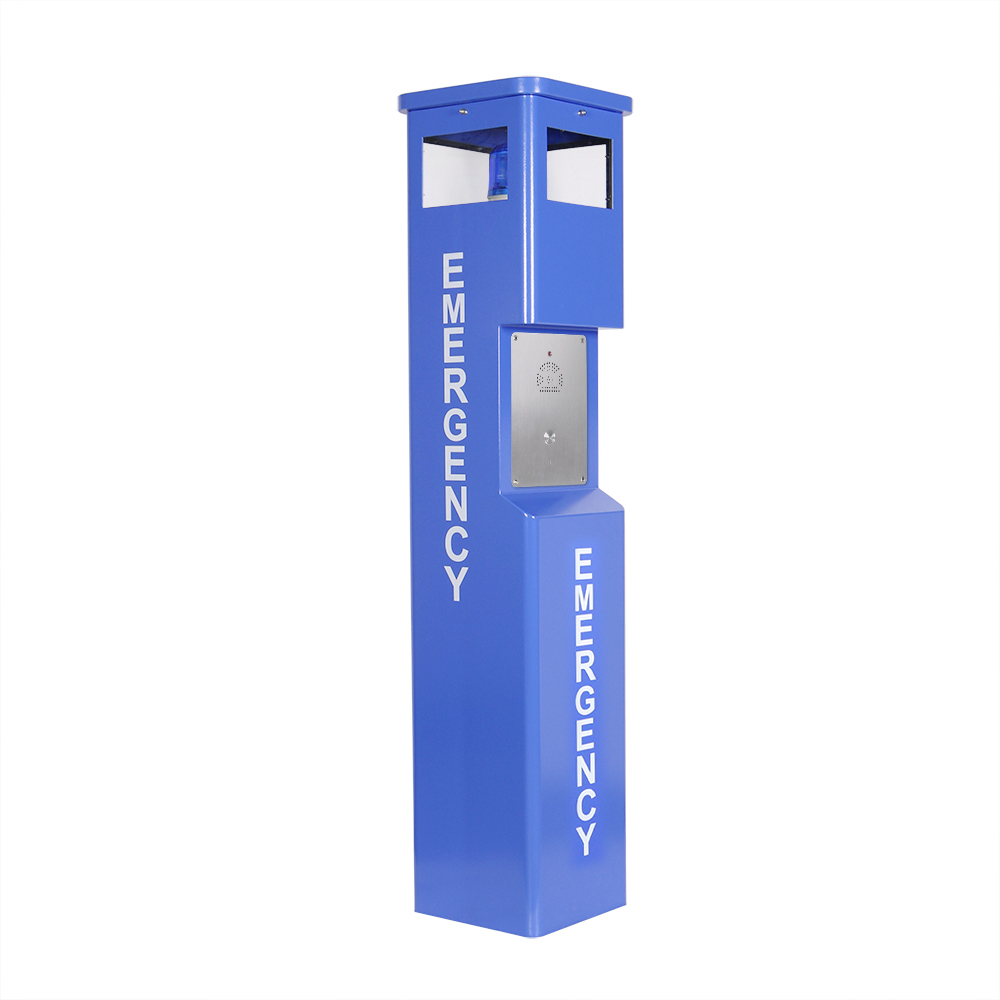

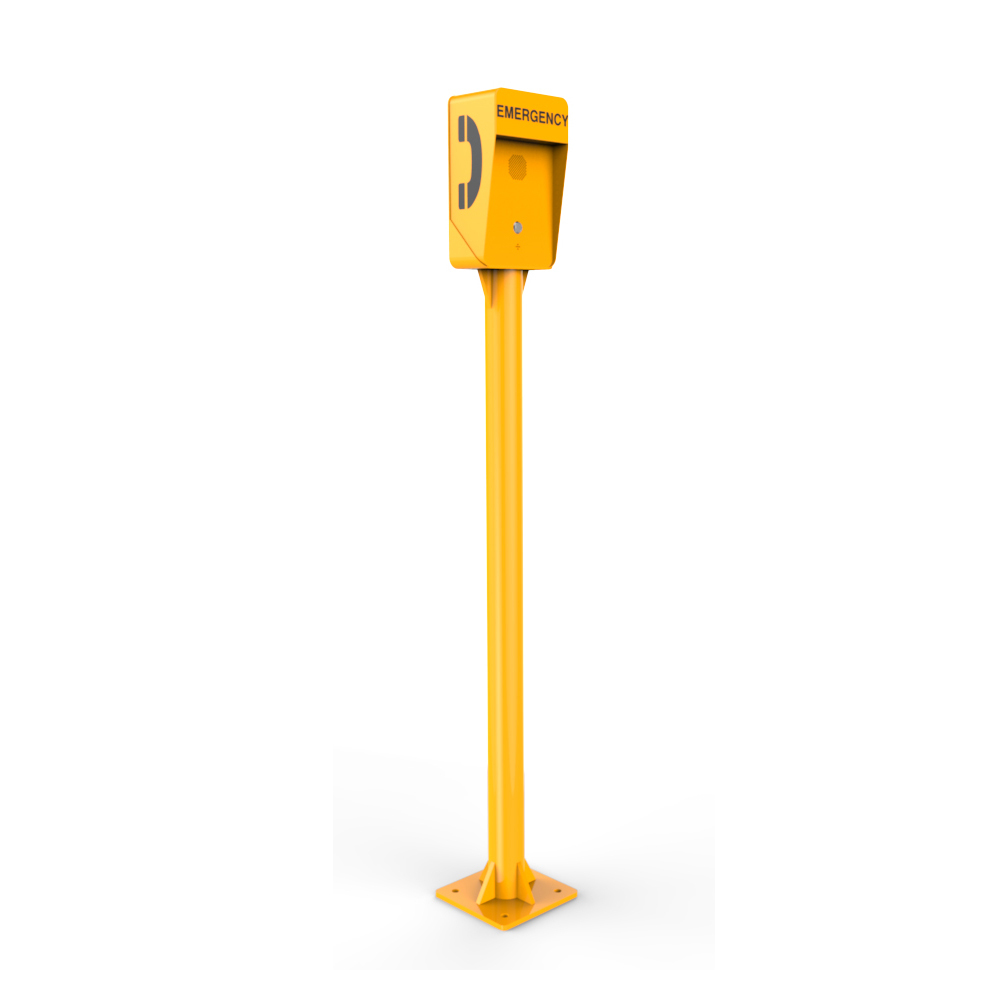

  • Emergency Pillar

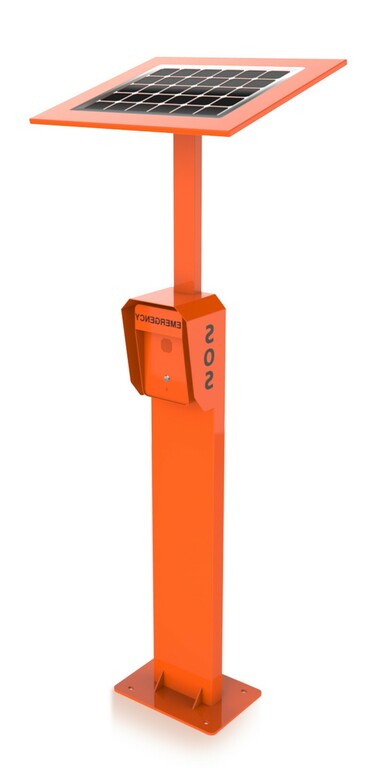

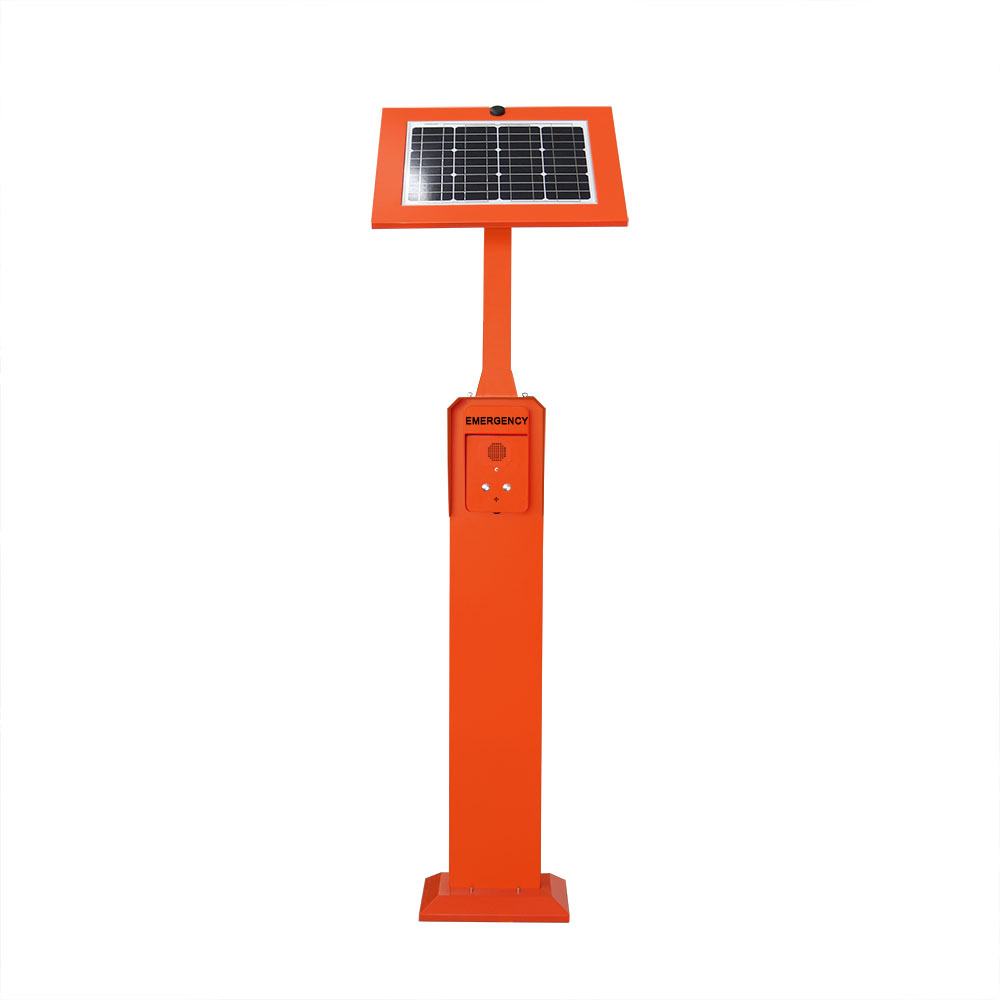

  • Solar powered Pillar

Compatible Modules

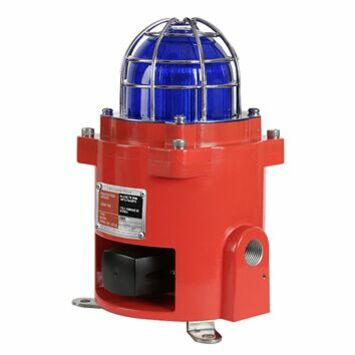

  • Alarm Beacon for Emergency Pillar & Booth.
  • Broadcasting IP Speaker for Emergency Pillar & Booth.
  • Solar power module for Emergency Pillar & Booth.
  • GSM/4G communication Module for Emergency Pillar.

Specification

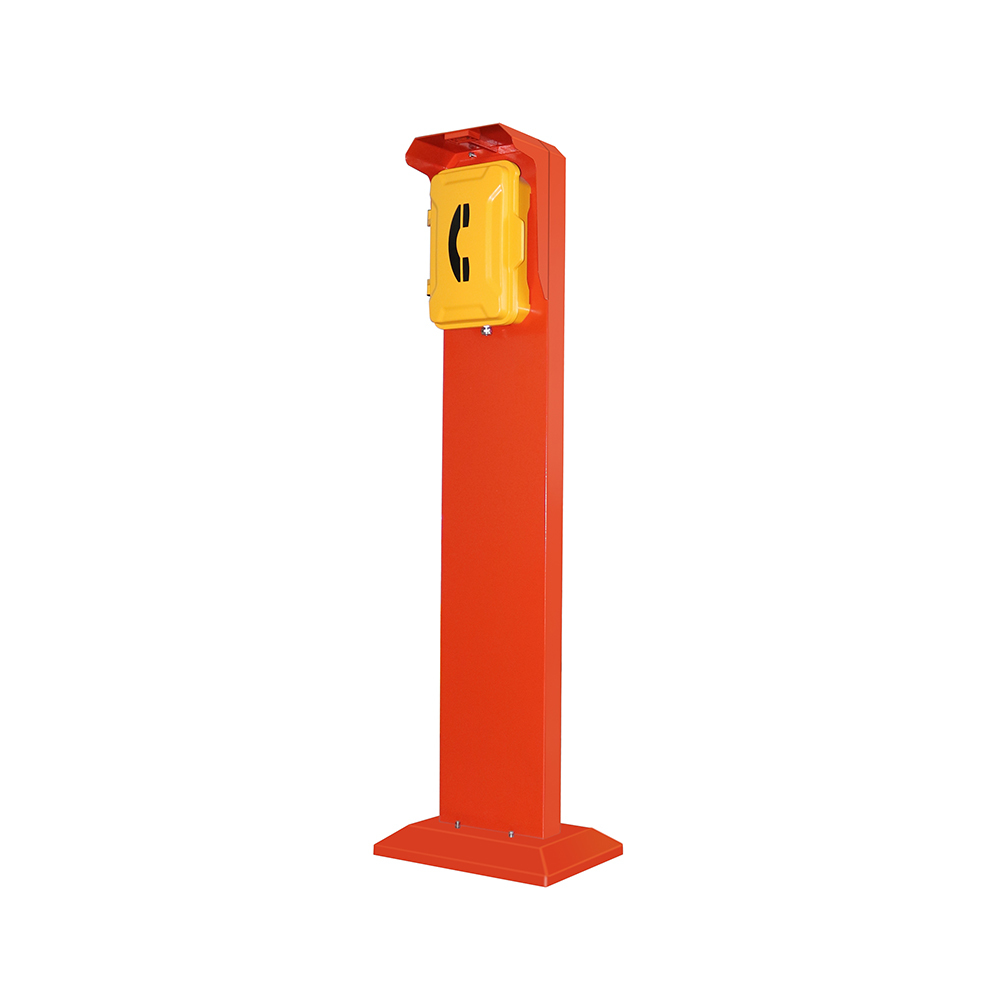

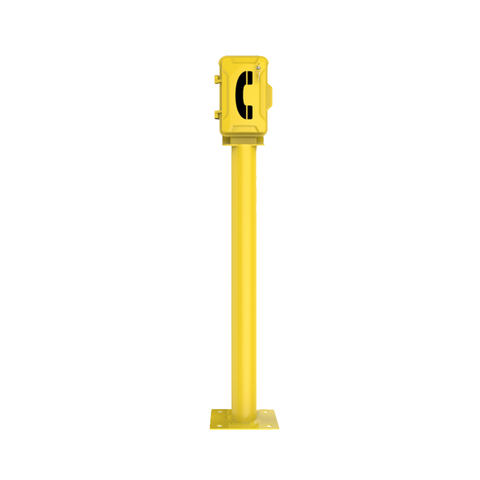

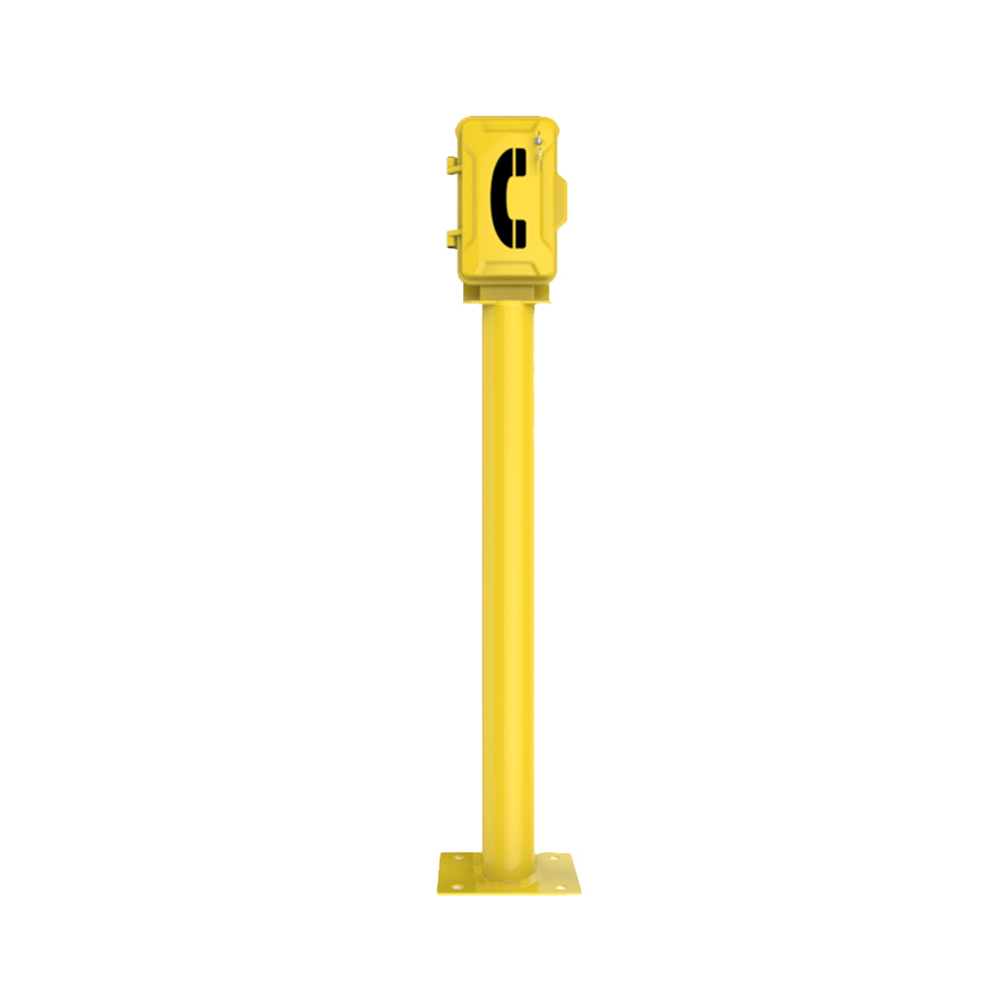

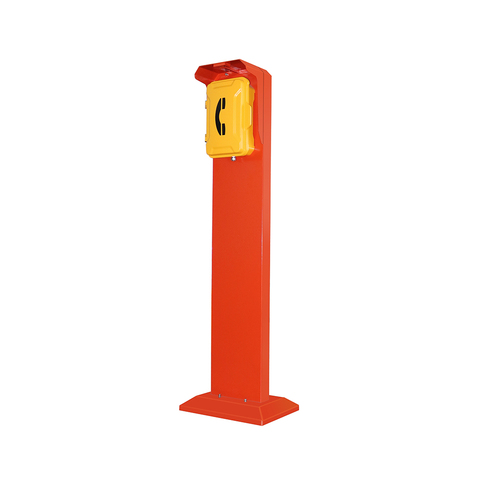

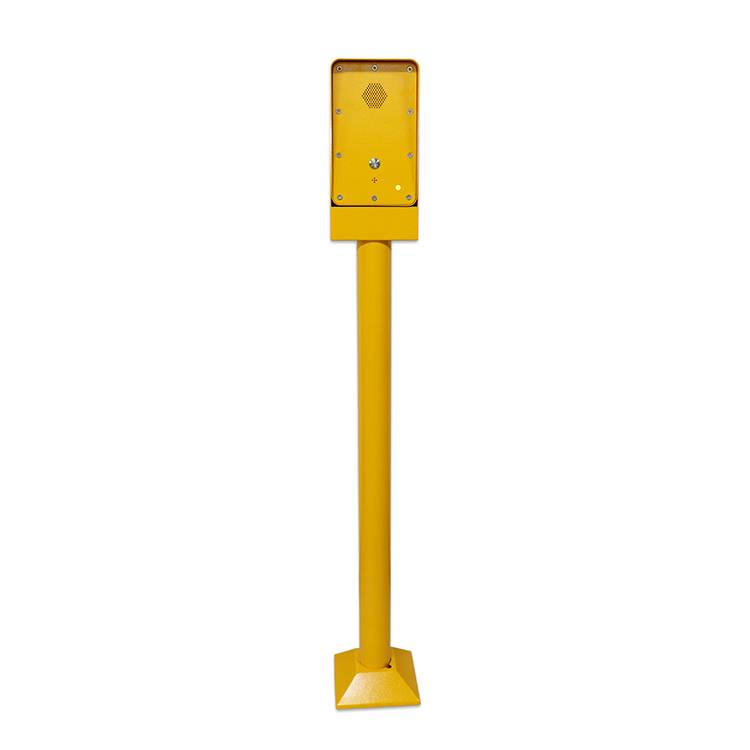

  • Telephone Pillar
    • For SIP. Analog & 4G units.
    • Waterproof and Dustproof IP65.
    • Operating Temperature -40 to 70 0C.

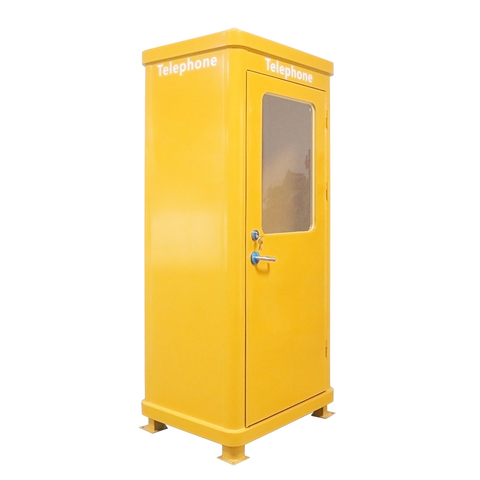

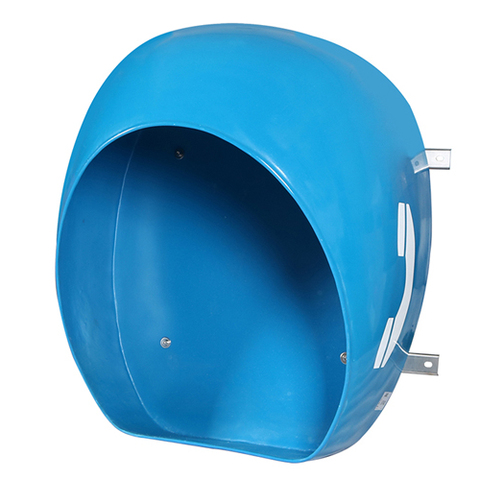

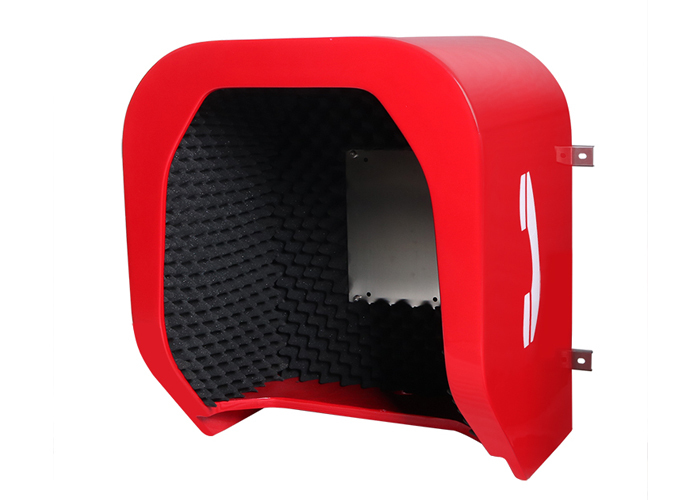

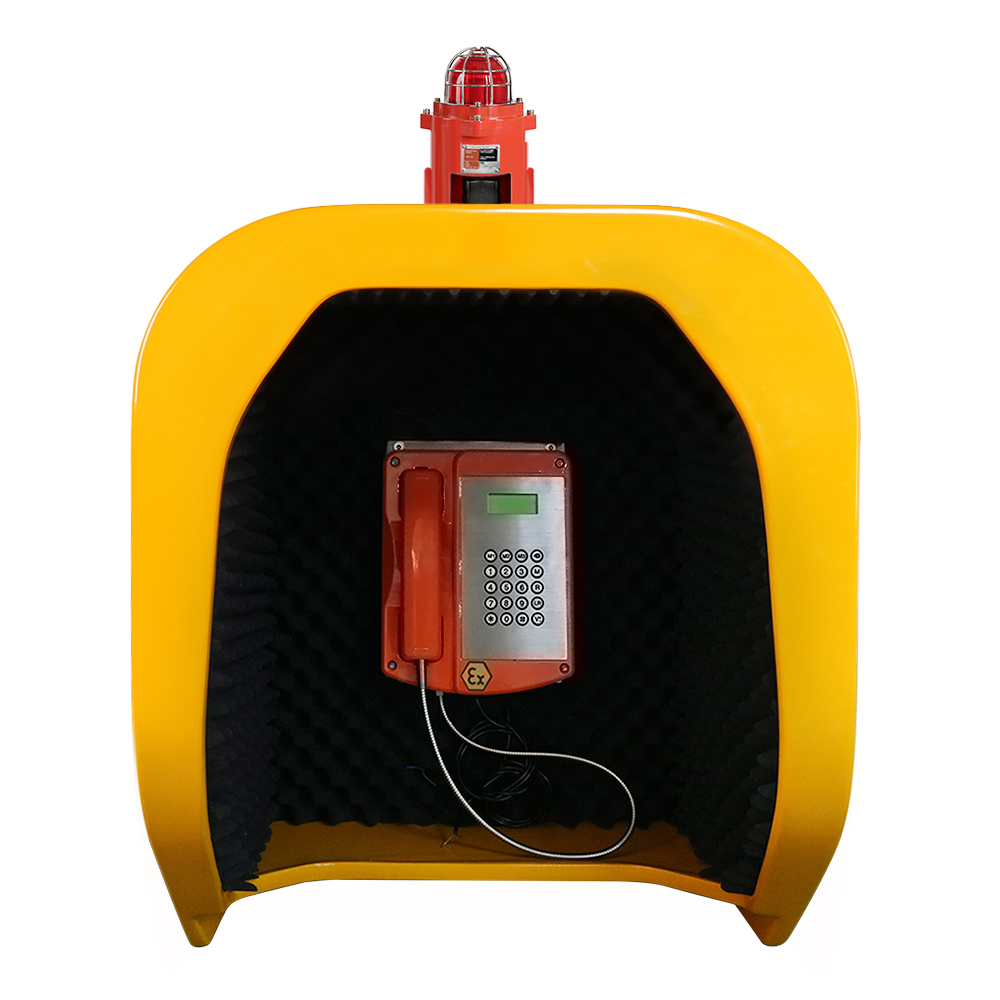

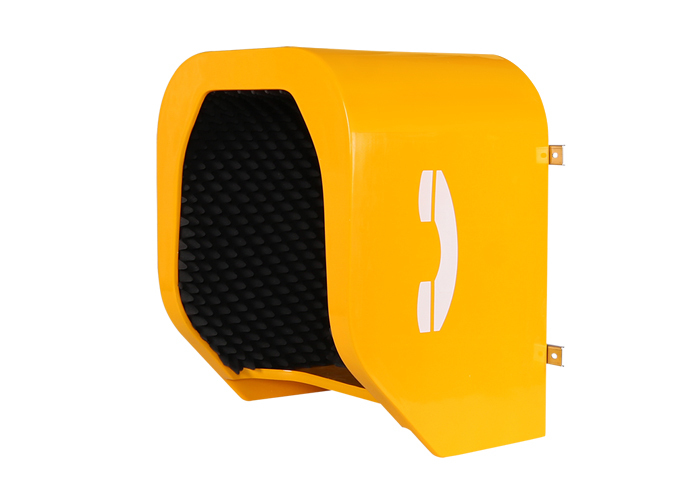

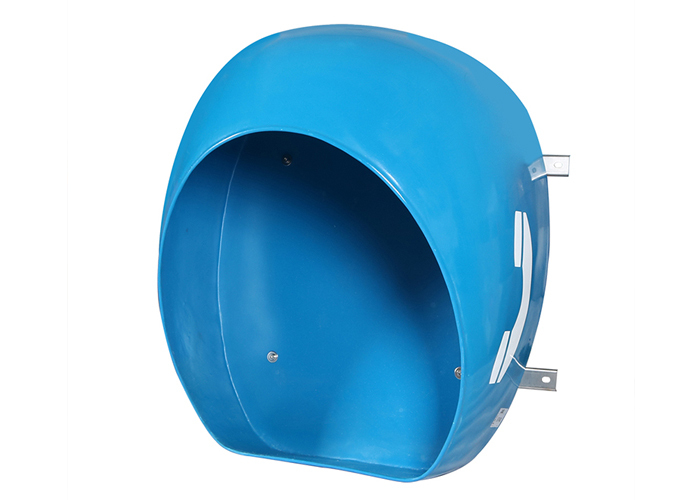

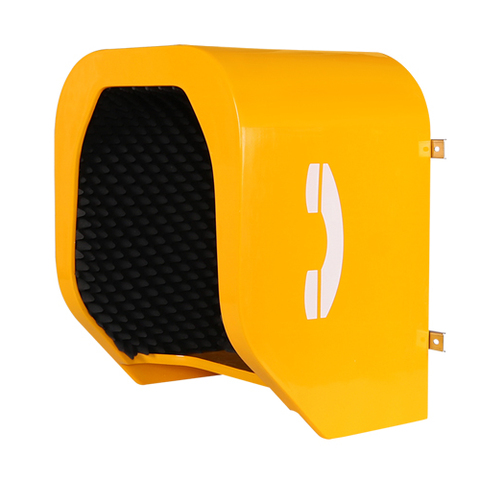

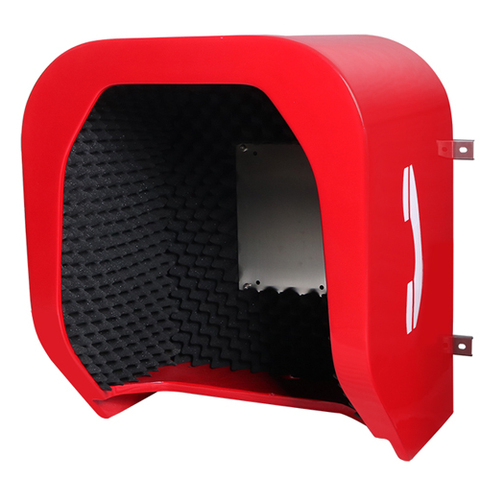

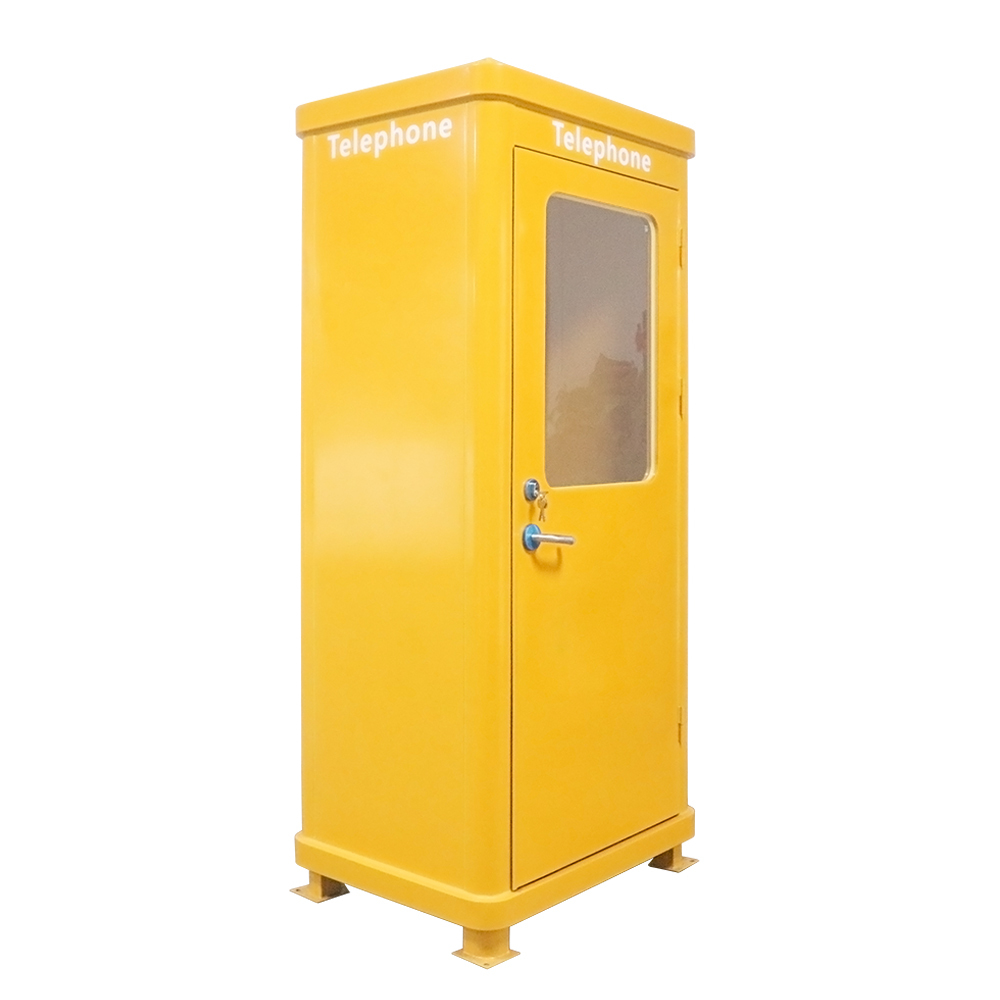

  • Booth & Acoustic Hood
    • GRP(glass fiber reinforced plastic)/Cold rolled steel.
    • Waterproof/explosion proof.
    • Anti-corrosion.
    • High temperature resistance/Flame retardant.
    • Noise reduction15 dB to 38 dB.
    • Suitable for Harsh Application Fields: Ship, offshore/onshore platform, power plant, smelters, petrochemicals, etc.

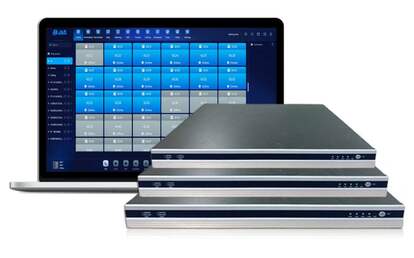

JRTNS converged intercom server

JRTNS converged intercom server is based on the standard SIP protocol. It can achieve two-way intercom by accessing terminals and gateway devices such as broadcast intercom terminals, fire alarm gateways, IP cameras, voice gateways, and IP phones. Talking, group calling, monitoring and monitoring, alarm for help, zone broadcast, background music, security linkage and other functions, suitable for banks,

schools, scenic, spots ,mining, metallurgy, petrochemicals, electric power, ports, prisons, troops, highways.

Software Features

  • Two-way intercom, video intercom, multi-party intercom, call recording, hunt group, call queuing, forced insertion and removal, environment monitoring, call monitoring.
  • Amplified intercom supports point amplification, group amplification and full amplification functions.
  • Electronic map
  • Supports intercom, broadcast, video, alarm and other operations on an electronic map.
  • Broadcast function:
  • Supports product docking with mainstream video surveillance manufacturers.
  • Alarm linkage:
  • Supports alarm reporting, sound and light prompts, alarm processing, alarm recording, SMS linkage, switch linkage, and alarm video.
  • Integration options available through Open API interface & Data Exchange through HTTP protocol.
  • Video Function support video preview, intercom linkage, and stream switching.
  • Alarm linkage supports alarm reporting, sound, light prompts, alarm processing,
  • alarm recording, broadcast, linkage, SMS linkage, switch linkage, and alarm video.

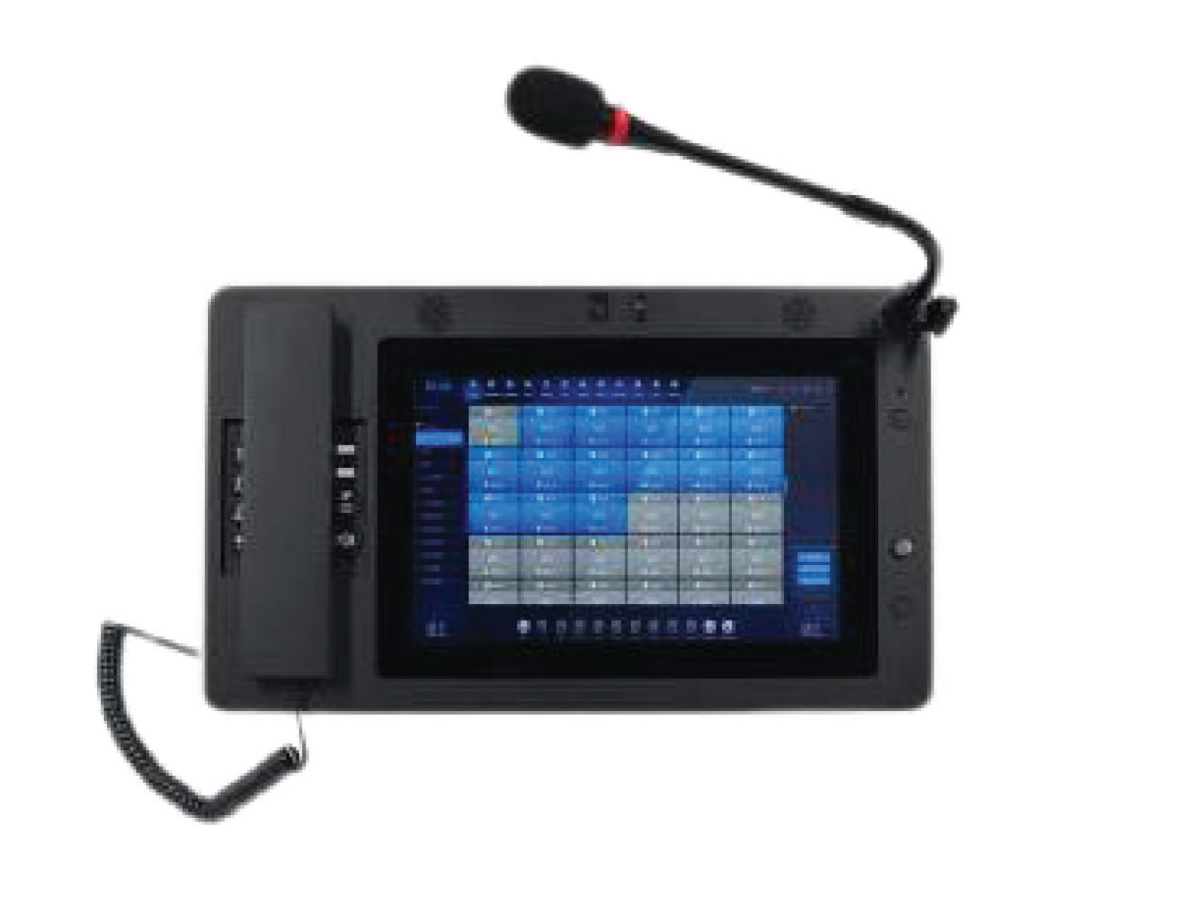

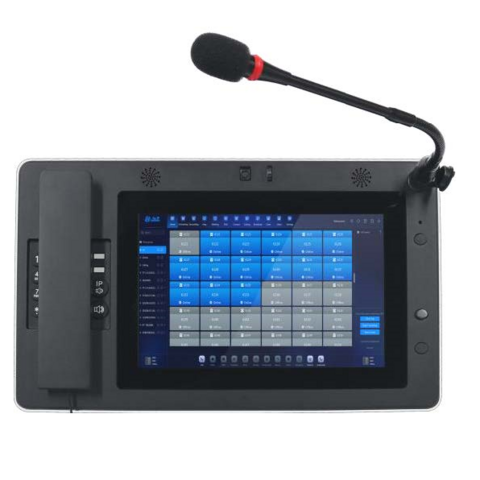

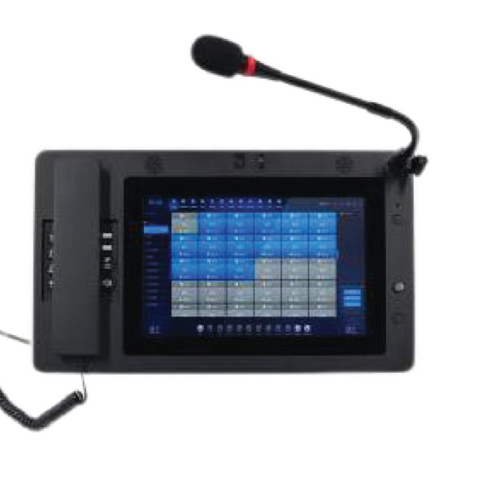

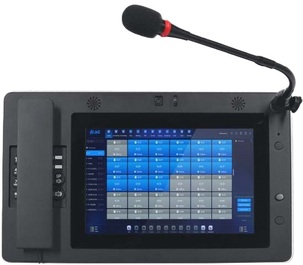

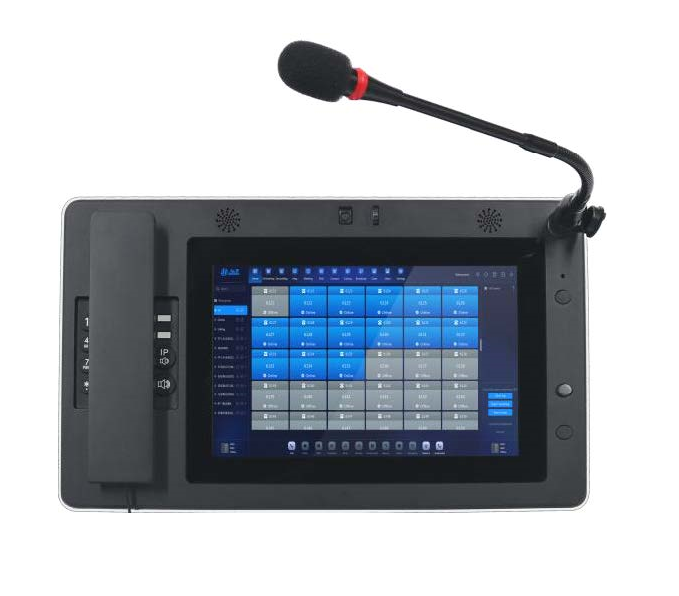

IP Dispatching Console/Master Station

  • This product is a powerful embedded computer and interactive touch screen terminal.
  • Supports modular design, allows configuration of a single handle, HD telephone handset, microphone, etc.,
  • Supports modular design, allows configuration of a single handle, HD telephone handset, microphone, etc., can be customized and integrated into telephone and communication equipment, and has convenient operation and management functions.
  • Can be customized and integrated into telephone and communication equipment,
  • and has convenient operation and management functions.

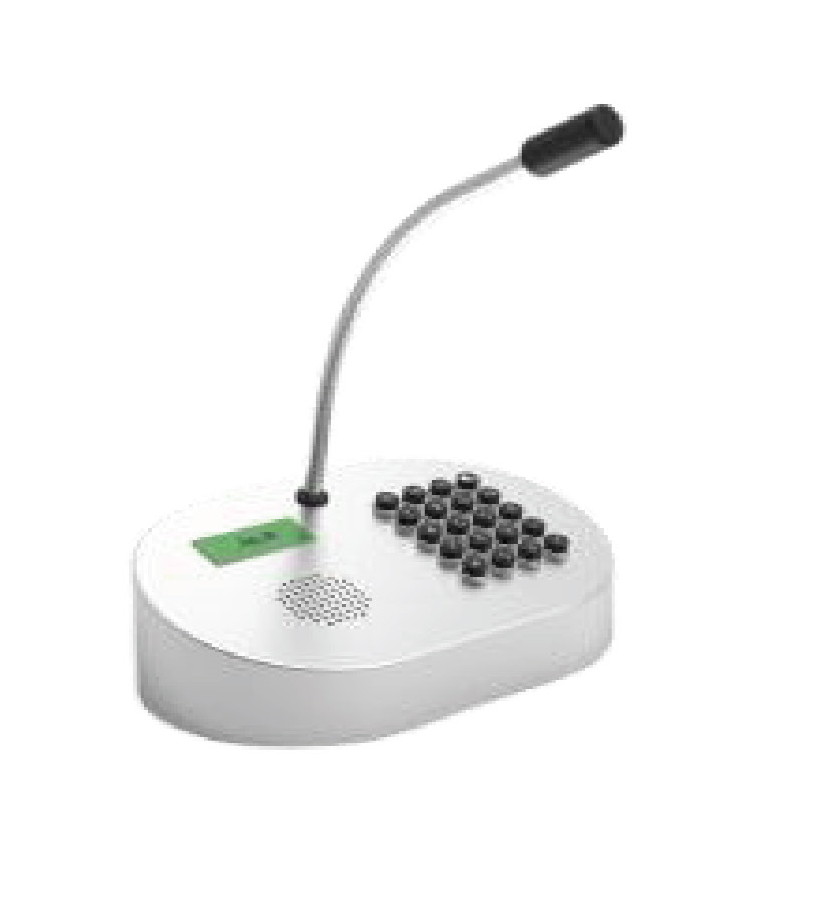

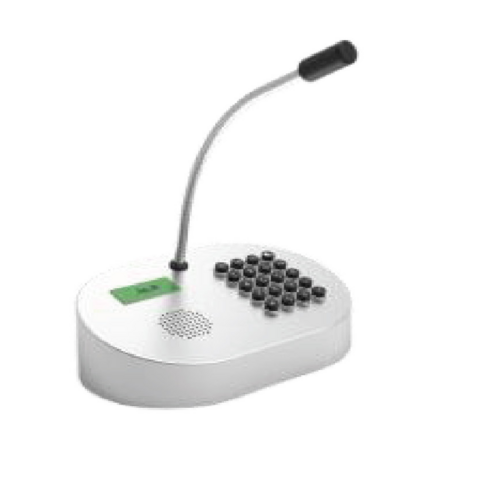

Control room SIP/VoIP Gooseneck Intercom

  • Vandal resistant and rugged keypad.
  • Hands free operation with goose-neck microphone and LCD display.
  • Desk top mounting.
  • Weather proof protection: IP54 to IP65.
  • External power supply or PoE power supply.
  • CE, FCC, IK10 compliant.
